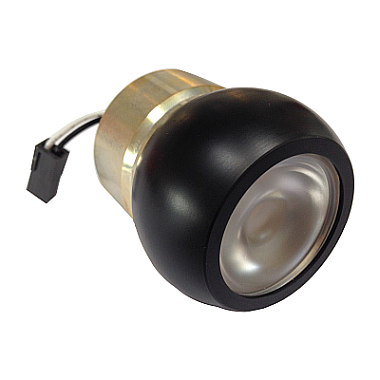

Hunza Tilting Module

The Hunza Tilting Module PureLED is designed to fit into Hunza 63.5mm (2.5”) diameter PureLED bodies. It allows 360° rotation and 12° tilt from centre. The spherical gimbal allows infinite beam correction for uneven surfaces and directional adjustment for glare control, particularly useful for Floor Lites, Pool Lites, and Step Lites.

It is machined from solid aluminium to maximise heat dissipation, and features the Hunza multi-coat protection system, including chromate and anodised layers, for maximum corrosion resistance.

The Hunza PureLED system uses the latest Cree MTG-2 LED chips for maximum performance and long life. Power supply options include a choice of integral 12VAC or 9-36VDC drivers and an external remote driver (series connection) option. The PureLED system incorporates an innovative Plug-and-Play system for easy replacement or upgrade of either the LED engine or integral driver. Four beam angles, and a choice of 2700K, 3000K or 4000K colour temperatures are available.

Tilting Module PureLED.pdf
