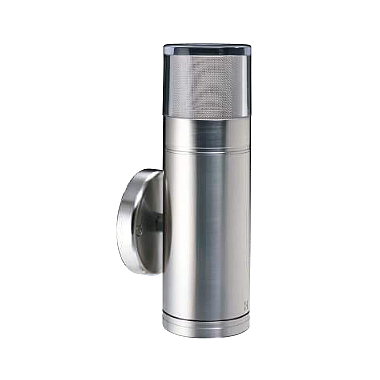

Hunza Dual Liter

The Hunza Dual Liter – also referred to as the Pillar Pagoda Lite – is the hybrid child of the Pillar Lite and Pagoda Lite, taking advantage of both G4 and MR16 light sources. By utilising the Pagoda Lite G4 lamp and lens on the top of the Pillar Lite broadens the applications and potential for this exterior lighting product.

Offering two different lighting effects in one luminaire:

1. A spread effect from the 20 watt G4 capsule and acrylic lens, (supplied as standard with mesh insert to reduce glare).

2. A shaft of light from the 20 watt MR16 light source.

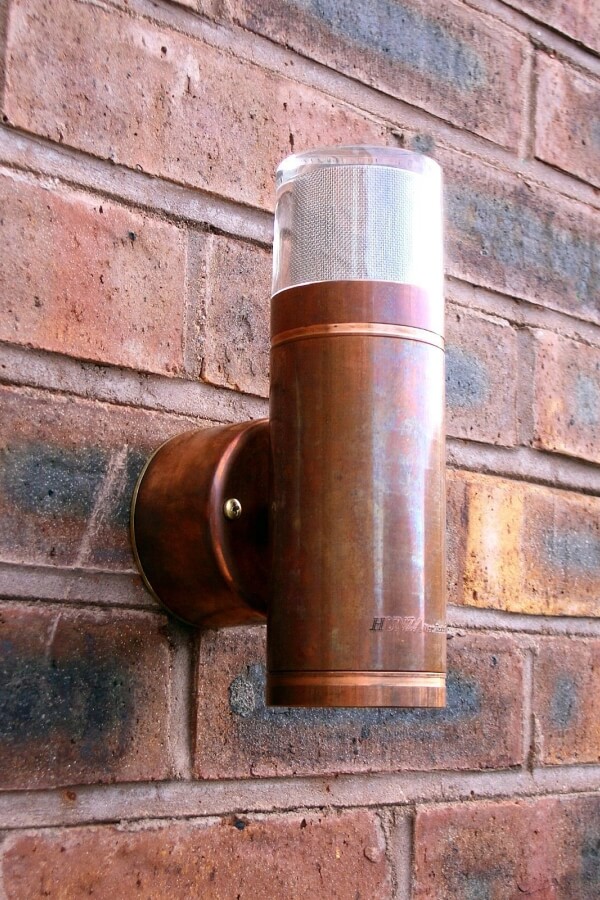

It is machined from 10mm thick aluminium with a UV stable powder coated finish (standard colours bronze, green, matt black and silver) or solid copper or 316 stainless steel, clear tempered glass lens and high temperature silicon gaskets.

This low voltage landscape lighting product is suitable for use with an 2 x 20 watt lamps and is supplied with a 20 watt high quality MR16 European 5000 hour lamp and a 20 watt G4 capsule European 3000 hour lamp.

Lifetime Warranty on Lens Breakage


Power Supply

Light Ideas T-20 or Hunza Buriable IG20 safety isolating transformer (single installation), multi installation with any of the Light Ideas transformer range or Hunza IG safety isolating transformers, alternatively the Hunza Wall Mount series WMl00 – WM3OO Double Insulated Safety Isolating Transformers.

RETRO Fit Installation An installation where mounting a transformer is a problem, e.g. a brick wall where there is only the cable protruding out of the wall and it is not an option to recess the transformer or when replacing an existing light fitting. The Retro option is available with an approved 240/250 AC encapsulated IP66 dimmable transformer built into the base. The base size increases to 78mm diameter and 48mm deep.

Available Options & Finishes

Copper, 316L Stainless Steel and Powdercoated Aluminium:
PILPGL Dual Liter (Pillar Pagoda Lite)
PILPGL/R Dual Liter (Pillar Pagoda Lite) Retro (Integral Elec. Transformer)
PILPGL/GU Dual Liter (Pillar Pagoda Lite) GU10

Accessories

CJK150 – Cable Joint Kit (available in single kits or packs of 5)
LENS/DSTEP-FR – Frosted Lens
GG/### – Glare Guard
HCL/### – Hex Cell Louvre
LENS/OPAQUE – OPAQUE Lens for PGL/BOL/FN/TL
LED/LP-## – MR16 LED (available in Warm White, Cool White) as a replacement for the Dichroic lamp only

Dimensions

Dual Liter

Downloads

Dual Liter.pdf *
Dual Liter PureLED.pdf *

* Modified for the UK & European market
