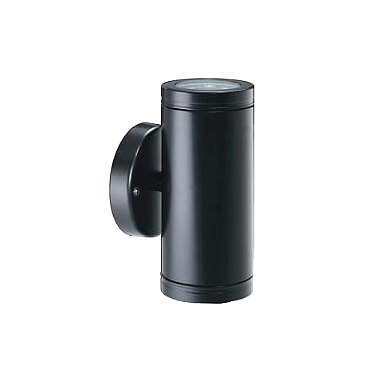

Hunza Pillar Lite

The Hunza Pillar Lite performs both uplighting and downlighting illumination, giving columns, gateway pillars and entrances a dramatic effect.

Machined from 10mm thick aluminium with a 78mm diameter mounting base, complete with stainless steel screws and is available in either a UV stable powder coated finish (standard colours bronze, green matt black, silver and white) or solid copper or 316 stainless steel with high temperature silicon gaskets.

This low voltage luminaire is suitable for use with MR16 – 2 x 20 watt lamps and is supplied with two 20 watt high quality European 5000 hour lamps.

A GU10 option is available with a 25 watt lamp European lamp and wall plate for easy waterproof installation. Please note that the operating temperature will increase.

Lifetime Warranty on Lens Breakage


Power Supply

Light Ideas T-20 or Hunza Buriable IG20 safety isolating transformer (single installation), multi installation with any of the Light Ideas transformer range or Hunza IG safety isolating transformers, alternatively the Hunza Wall Mount series WMl00 – WM3OO Double Insulated Safety Isolating Transformers.

RETRO Fit Installation An installation where mounting a transformer is a problem, e.g. a brick wall where there is only the cable protruding out of the wall and it is not an option to recess the transformer or when replacing an existing light fitting. The Retro option is available with an approved 240/250 AC encapsulated IP66 dimmable transformer built into the base. The base size increases to 78mm diameter and 48mm deep.

Available Options & Finishes

Copper, 316L Stainless Steel and Powdercoated Aluminium:
PIL Pillar Lite
PIL/R Pillar Lite Retro (Integral Elec. Transformer)
PIL/GU Pillar Lite GU10

Accessories

CJK150 – Cable Joint Kit (available in single kits or packs of 5)
LENS/DSTEP-FR – Frosted Lens
GG/### – Glare Guard
HCL/### – Hex Cell Louvre
MR16 LEDs (available in Warm White, Cool White and Blue)

Dimensions

Pillar Lite

Downloads

Pillar Lite.pdf *
Pillar Lite PureLED.pdf *

* Modified for the UK & European market

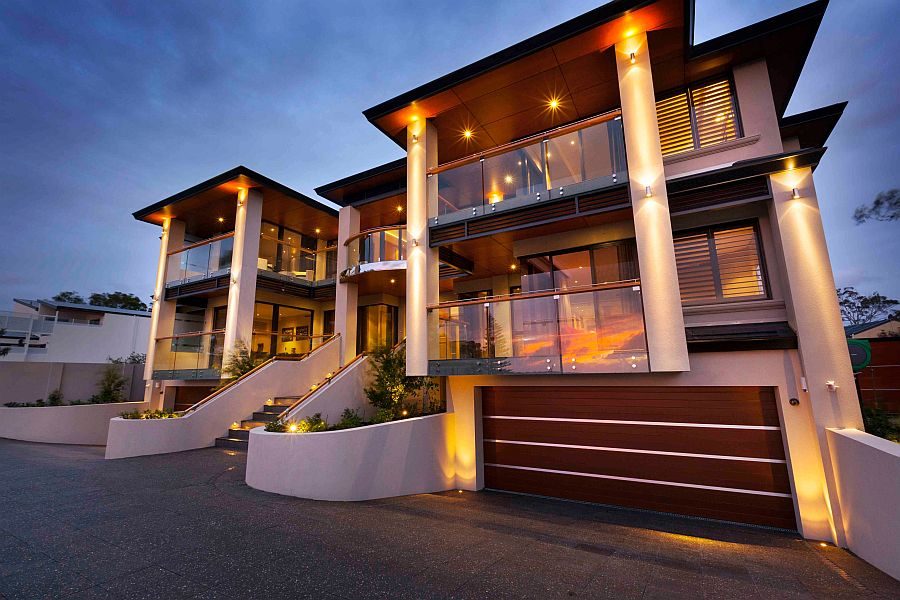

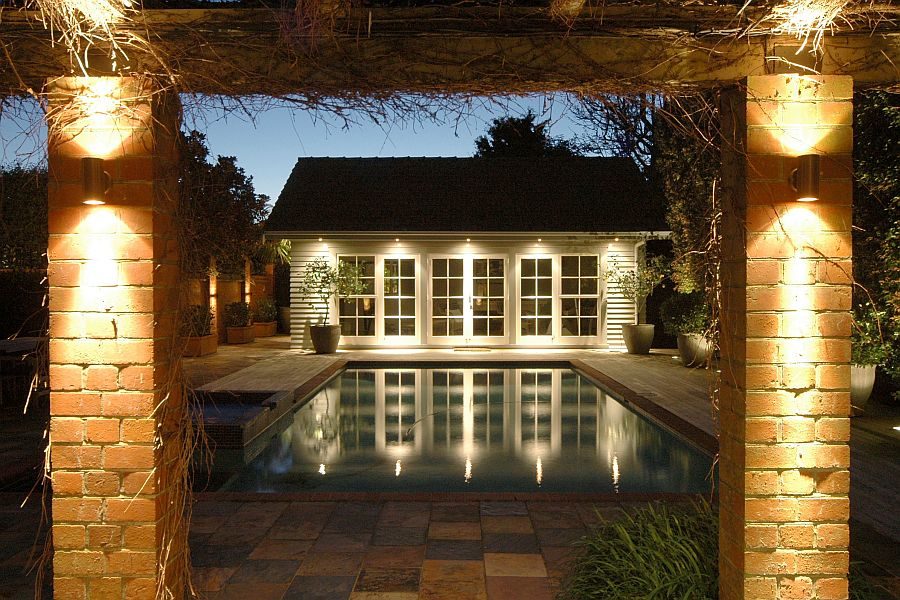

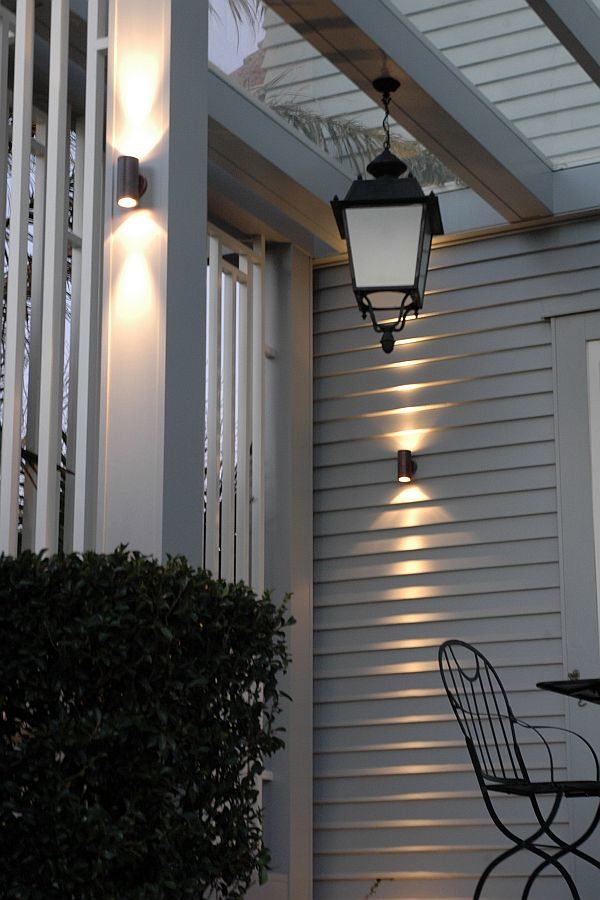

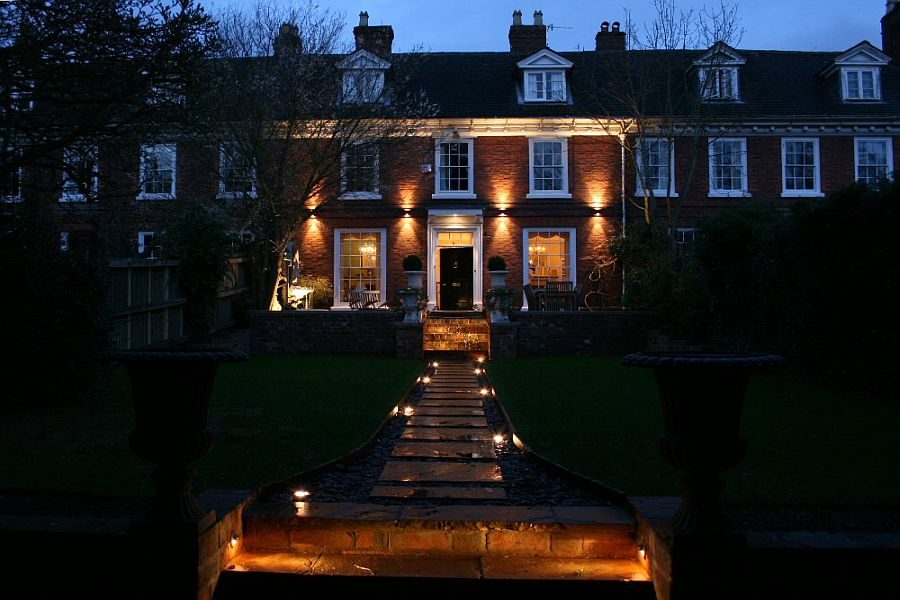

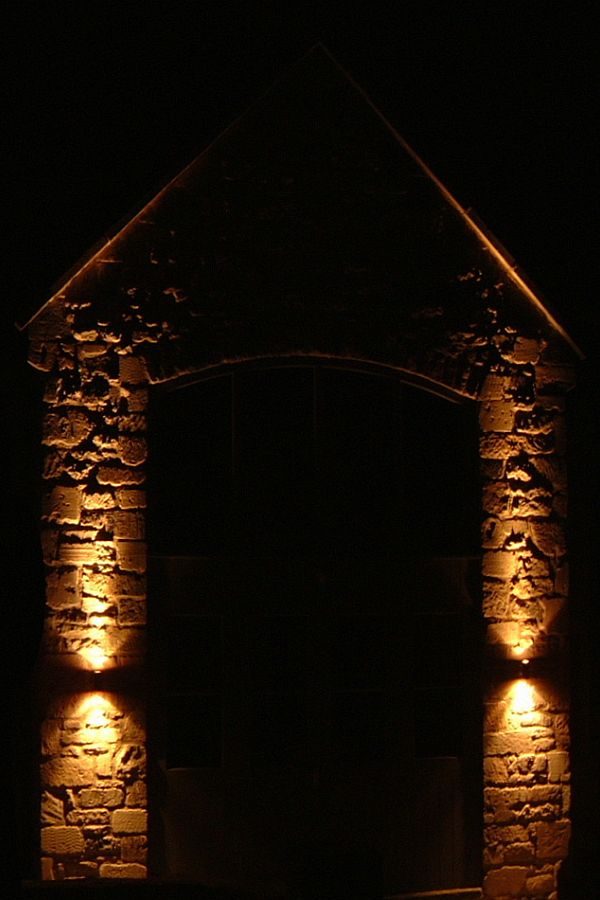

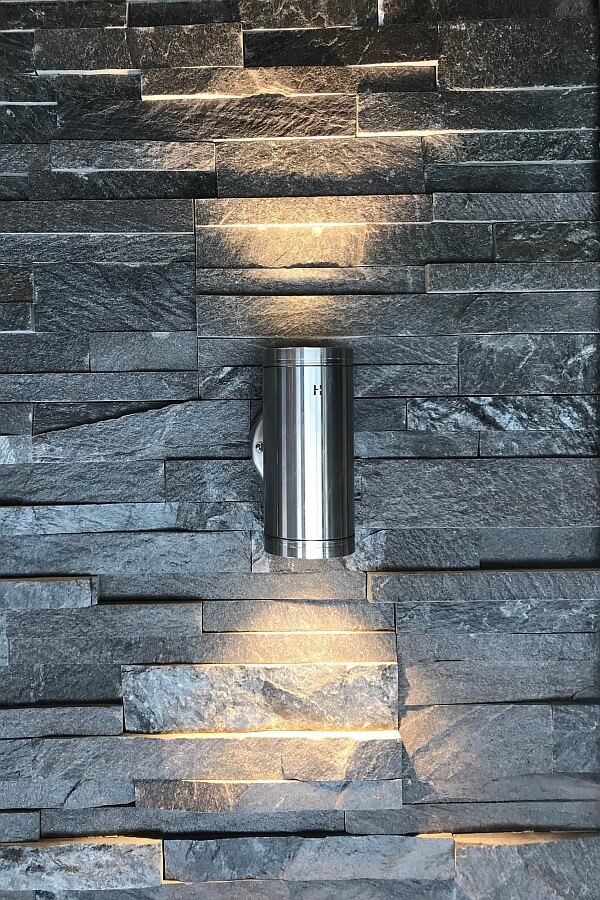

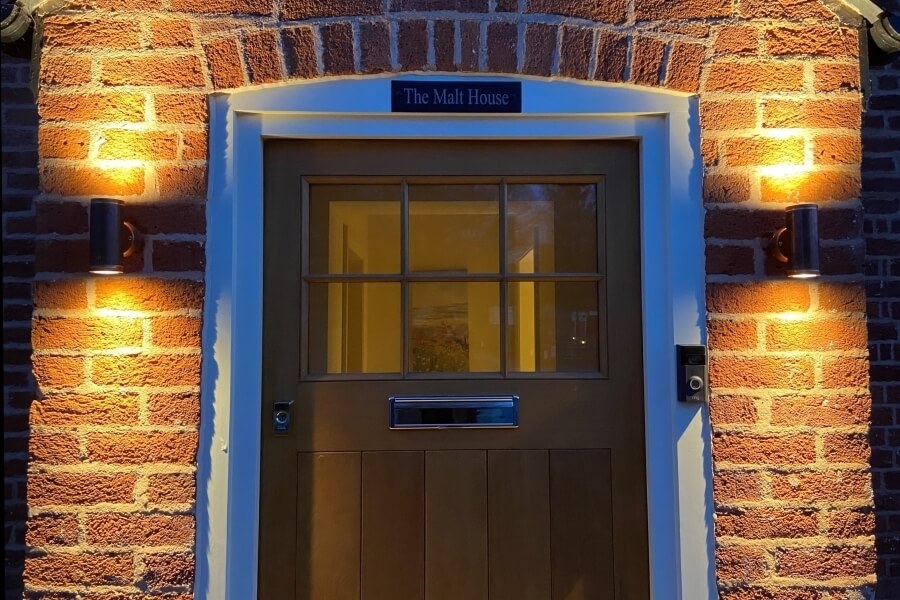

Pillar Lite Effects
