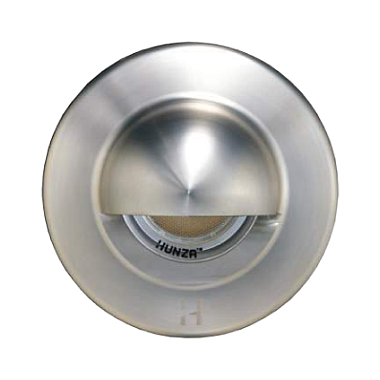

Hunza Euro Step Lite Solid Eyelid

The Hunza Euro Step Lite Solid Eyelid (or Seamless Eyelid) flange has a smooth machined finish without mounting holes to disrupt the elegant line of the luminaire and is designed to fit into a mounting canister.

Step lighting is an important part of any exterior lighting project for both safety and aesthetic purposes. The eyelid masks two thirds of the lamp face, eliminating any upward glare.

Designed with a 69mm diameter flange, body machined from 45mm thick solid copper or 316 stainless steel, clear tempered glass lenses with high temperature silicon gaskets.

This low voltage landscape lighting product is suitable for use with a MR11 – 5, 10 or 20 watt lamp (max) and is supplied with a 20 watt high quality European 5000 hour lamp.

Lifetime Warranty on Lens Breakage


Power Supply

Light Ideas T-50 or Hunza Buriable IG20 safety isolating transformer (single installation), multi installation with any of the Light Ideas transformer range or Hunza IG safety isolating transformers, alternatively the Hunza Wall Mount series WMl00 – WM3OO Double Insulated Safety Isolating Transformers.

Available Options & Finishes

Copper and 316L Stainless Steel only
ESLS Euro Step Lite Solid Eyelid

Accessories

CJK150 – Cable Joint Kit (available in single kits or packs of 5)
LENS/EFL – Frosted Lens
EFL-CAN – Euro Floor Lite Canister Aluminium
ESL/CAN – Euro Step Lite Canister Aluminium
ESL/CAN-SS – Euro Step Lite Canister Stainless Steel

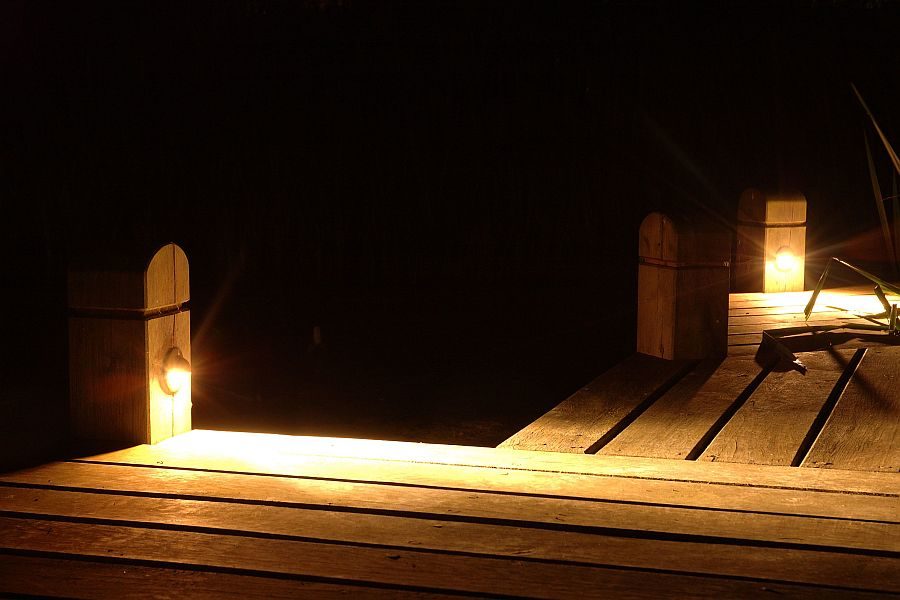

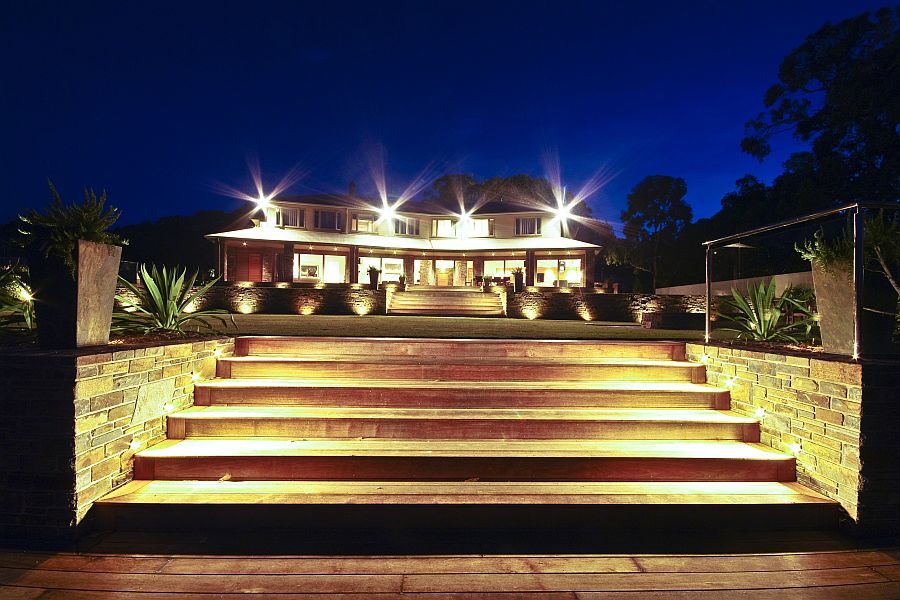

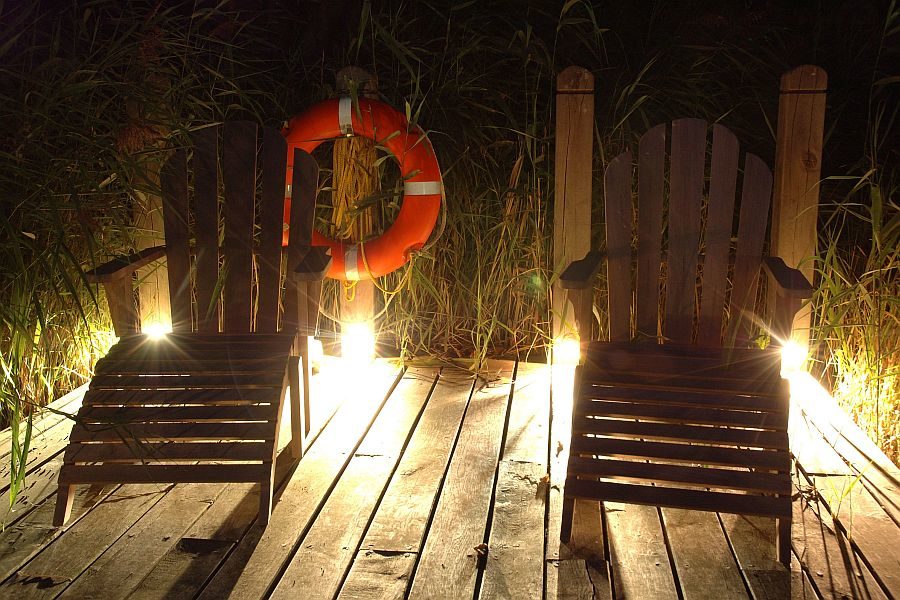

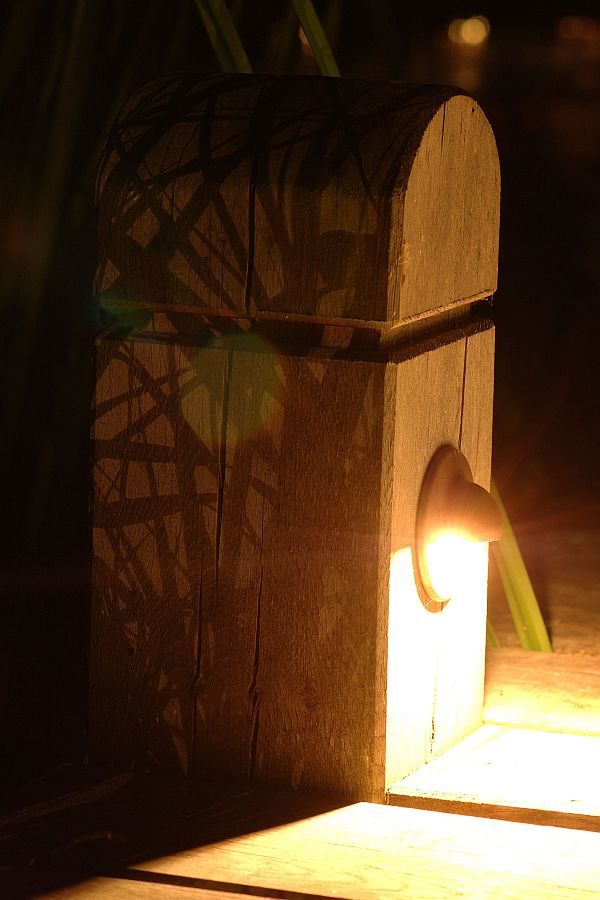

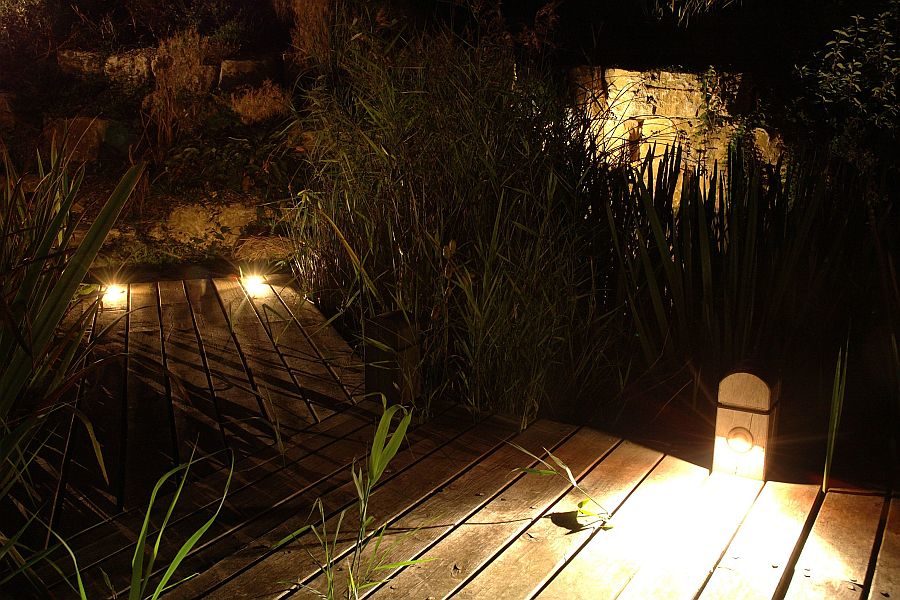

Euro Step Lite Solid Eyelid Effects

Euro Collection Range
