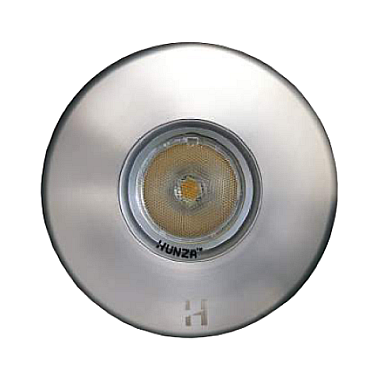

Hunza Euro Step Lite

Hunza Euro Step Lite

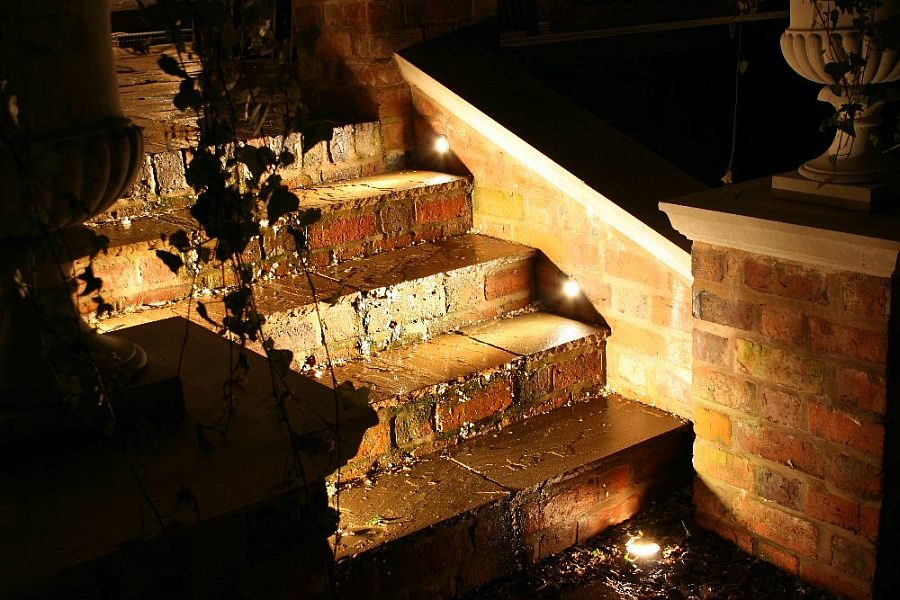

The Hunza Euro Step Lite is designed with a 69mm flange for flush mounting into masonry, stone or wood. This petite luminaire is ideal for step lighting, or alternatively, at ground level to light horizontally across driveways, patios or decking.
When installed using a canister there are no mounting holes in the flange.

Designed with a 69mm diameter flange, body machined from 45mm thick solid copper or 316 stainless steel, clear tempered glass lenses with high temperature silicon gaskets.

This low voltage landscape lighting product is suitable for use with an MR11 – 5, 10 or 20 watt lamp (max) and is supplied with a 20 watt high quality European 5000 hour lamp and built-in hex cell louvre.

Suitable for use with PureLED or retro fit LED lamps.

Finishes [?]

Specifications

LED Chip: Cree XHP-50-2 Plug and Play field replaceable LED board
Output: 420 Lumens @ 700mA
Lumens Per Watt: 105 Lumens @ 4 watts
Colour Temperature: 2700K, 3000K, 4000K
CRI Warm White (3000°K): 90+
Beam Angles: 15°, 25°, 38°, 60°
Ingress Protection: IP66
Standards: AS/NZS 61046, UL 1838, 2108, CSA C22.2 No. 250.7, 250.0-08, CE
Recommended Power Supply: Remote (Series) Driver, Retro 110/240 volt driver

Downloads

Euro Collection Range


Euro Step Lite Effects
