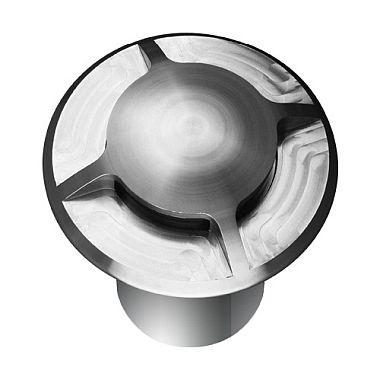

Hunza® Path Lite

The Hunza® Path Lite is ideal for lighting flat areas, decks, paved courtyards, and edge lighting paths. The new version now comes with a G4 Halogen capsule which is mounted higher allowing for greater projection of horizontal light.

The new capsule, coupled with a frosted Borosilica dome glass lens, significantly reduces glare through 1, 2, 3 or 4 facets. The frosted Borosilica dome glass lens has been developed to prevent dirt, mud, grass clippings or water from entering the optics area, keeping with its IP68 rating. In addition, the glass lens now retains the sealing gasket. The Path Lite 2 facet could be used as a Step Lite in a wall or fence, etc. to shine light up and down.

Machined from a solid block of copper or 316 stainless steel with stainless steel reflector, frosted tempered glass lens and high temperature silicon gaskets.

Alternatively, a 8 watt self ballasted 240 volt fluorescent option is available which offers excellent light output (comparative to a 40w incandescent lamp), low energy usage, long lamp life and very low heat generation. (Please note that the fluorescent version keeps the flat lens with dirt guard). This changes the luminaire to an IP66 rating.

Lifetime Warranty on Lens Breakage

Specification Sheet

Light Source(s):

LED MR16
3 Watt

LED MR16 3 Watt

LED MR16
6 Watt

LED MR16 6 Watt

Power Supply:

Light Ideas T-50 or Hunza® Buriable IG20 safety isolating transformer (single installation), multi installation with any of the Light Ideas transformer range or Hunza® IG safety isolating transformers, alternatively the Hunza® Wall Mount series WMl00 – WM3OO Double Insulated Safety Isolating Transformers.

Available Options & Finishes:

Copper and 316L Stainless Steel

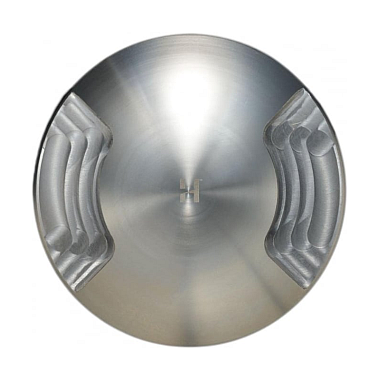

PATH Path Lite – 1, 2, 3 or 4 facet
PATH-FL Path Lite 240v Fluorescent – 1, 2, 3 or 4 facet

Accessories:

CJK150 – Cable Joint Kit (available in single kits or packs of 5)
SL/CAN-A – Aluminium Step Lite Canister
CAN-SS – 316 stainless steel Step Lite Canister
SL/FL/CAN-FL – Canister for Step Light/Floor Light Fluorescent

Lighting Effect(s)

 align=

 align=

 align=

 align=

 align=
