Hunza Sign Lite

Hunza Sign Lite

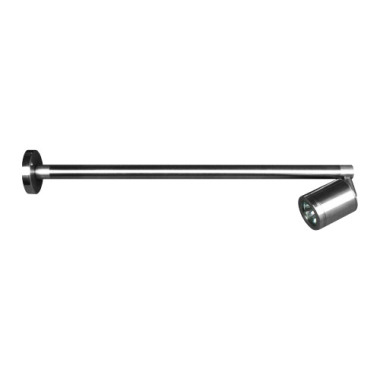

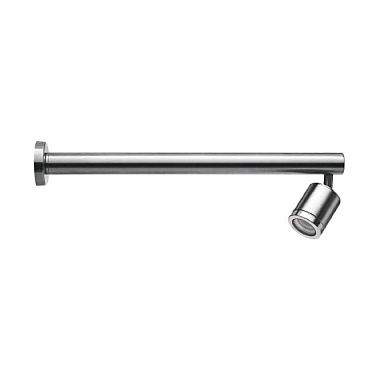

The Hunza Sign Lite has a fully adjustable head allowing 360° rotation and 0–90° elevation mounted on a 500mm arm. Suitable for mounting on timber, masonry, stone, etc. this luminaire is been specifically design for down lighting signs, or alternatively could also be used for down lighting decks or patios. A diverse product that meets the demands of exterior lighting schemes.

Machined from 10mm thick aluminium with a UV stable powdercoated finish, solid copper or 316 stainless steel, clear tempered glass lens and high temperature silicon gaskets. This low voltage fitting is suitable for use with an MR16 – 20, 35 or 50 watt lamp and is supplied with a high quality 20 watt European lamp.

Suitable for use with PureLED or retro fit LED lamps.

Finishes [?]

Eco Matt Powdercoat Colours [?]

Specifications

LED Chip: Cree XHP-50-2 Plug and Play field replaceable LED board
Output: 600 lumens @ 1050mA
Lumens Per Watt: 100 lumens @ 6 watts
Colour Temperature: 2700K, 3000K, 4000K
CRI Warm White (3000°K): 90+
Beam Angles: 15°, 25°, 38°, 60°
Ingress Protection: IP66
Standards: AS/NZS 61046, UL 1838, 2108, CSA C22.2 No. 250.7, 250.0-08, CE
Recommended Power Supply: Remote (Series) Driver, Retro 110/240 volt driver

Downloads

Spot Lighting Range
