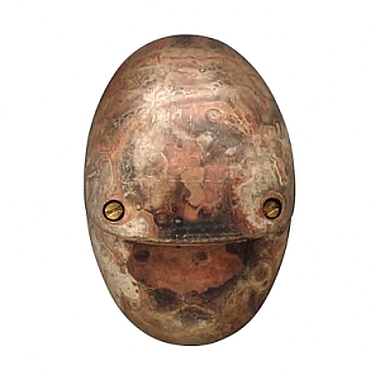

Hunza Mouse Lite

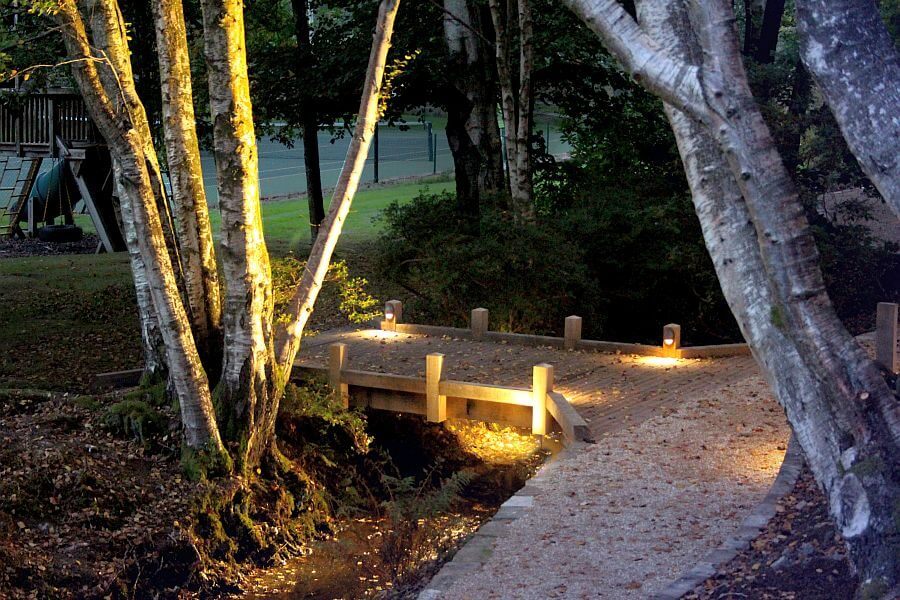

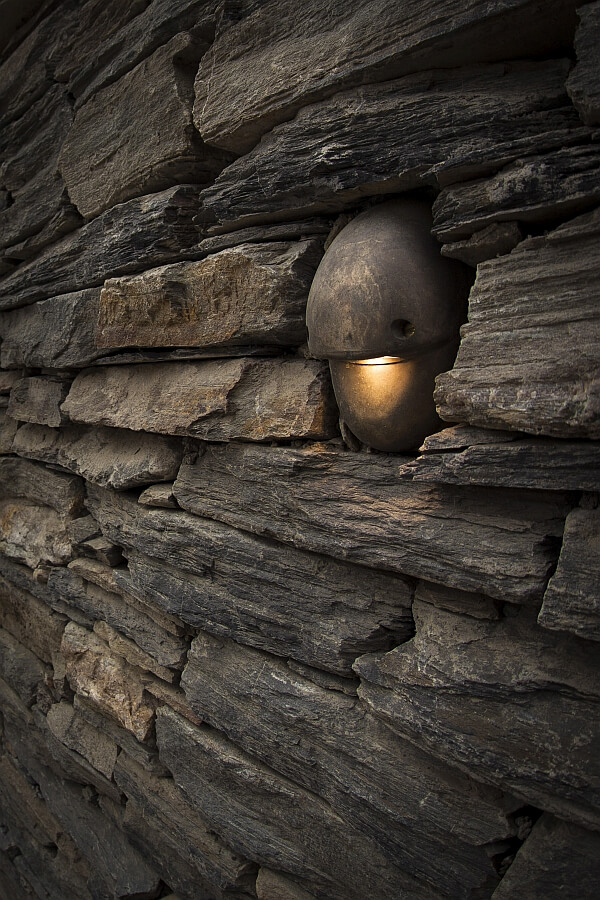

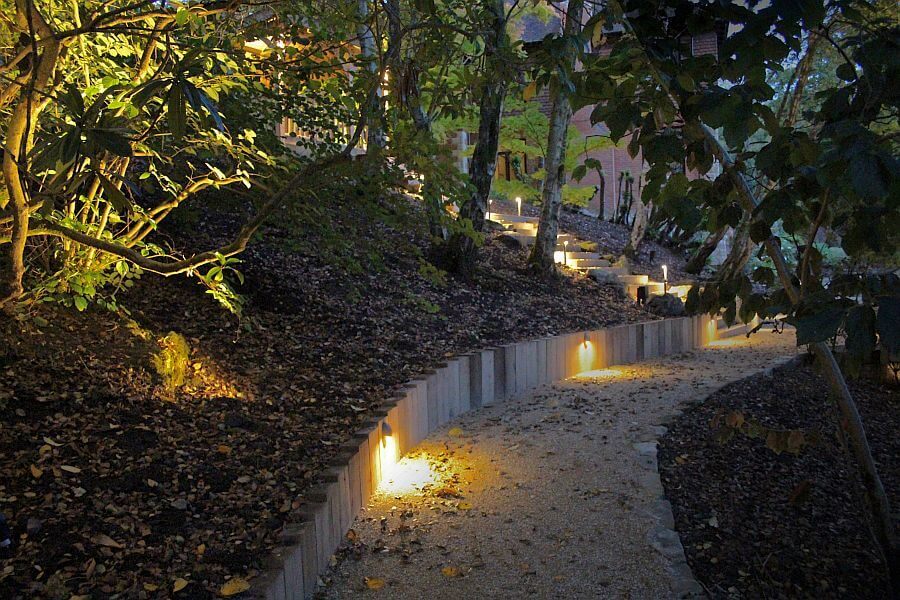

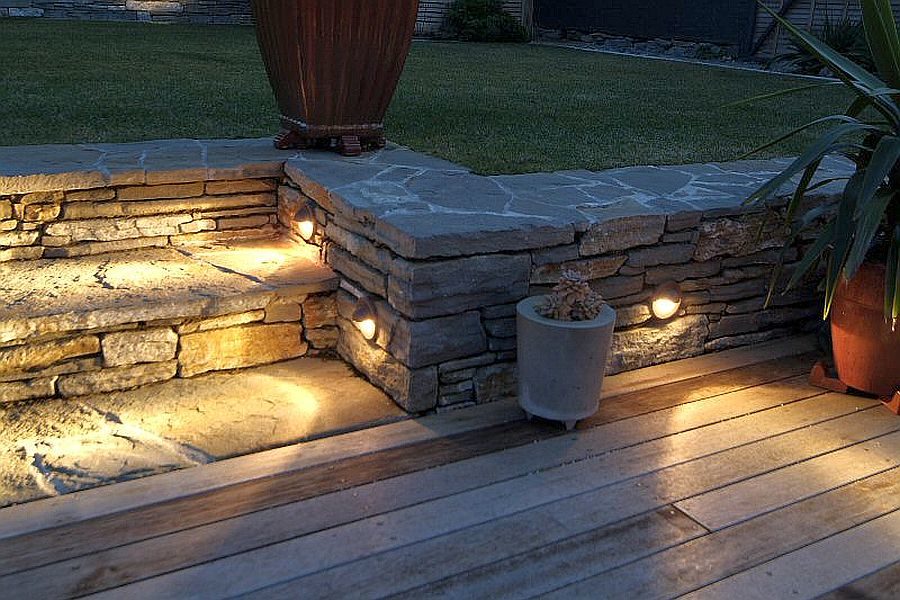

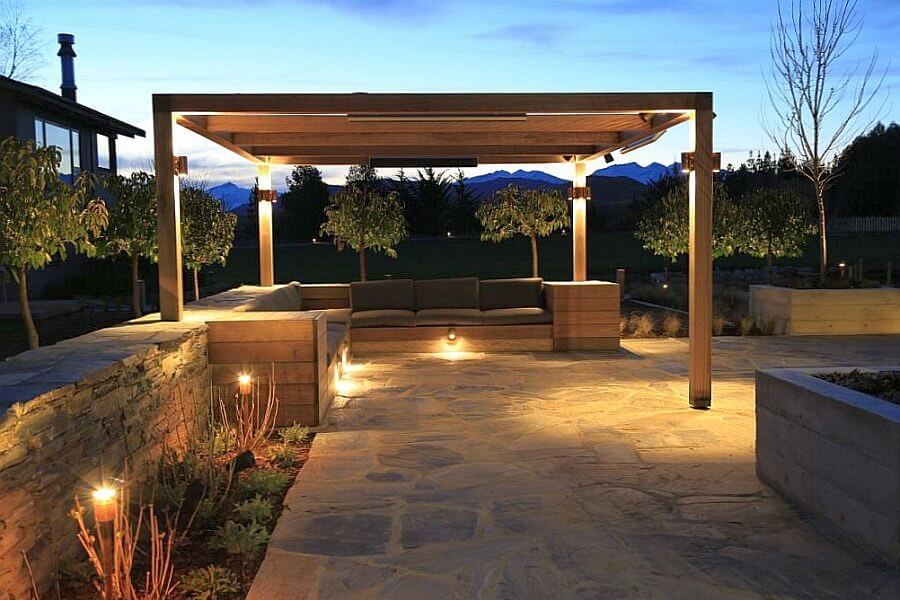

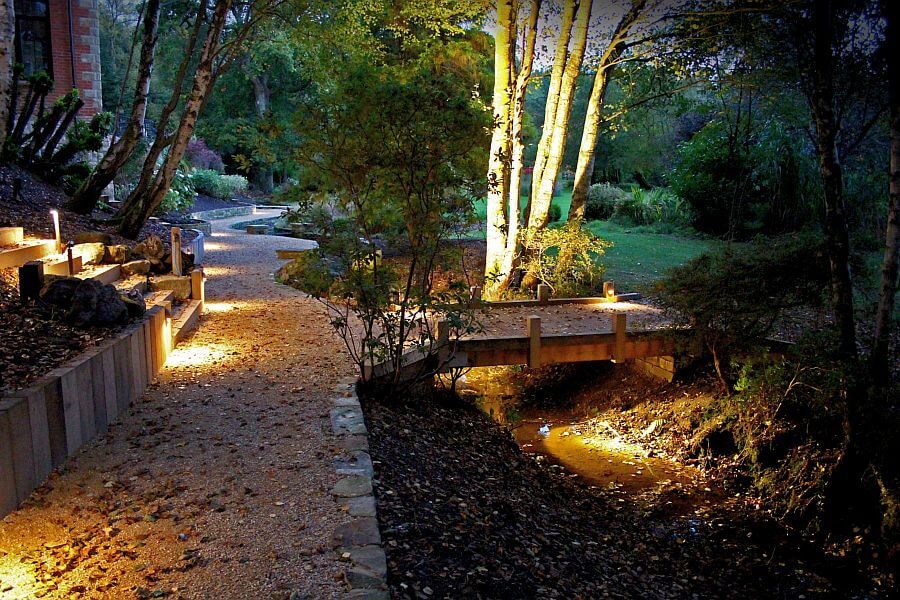

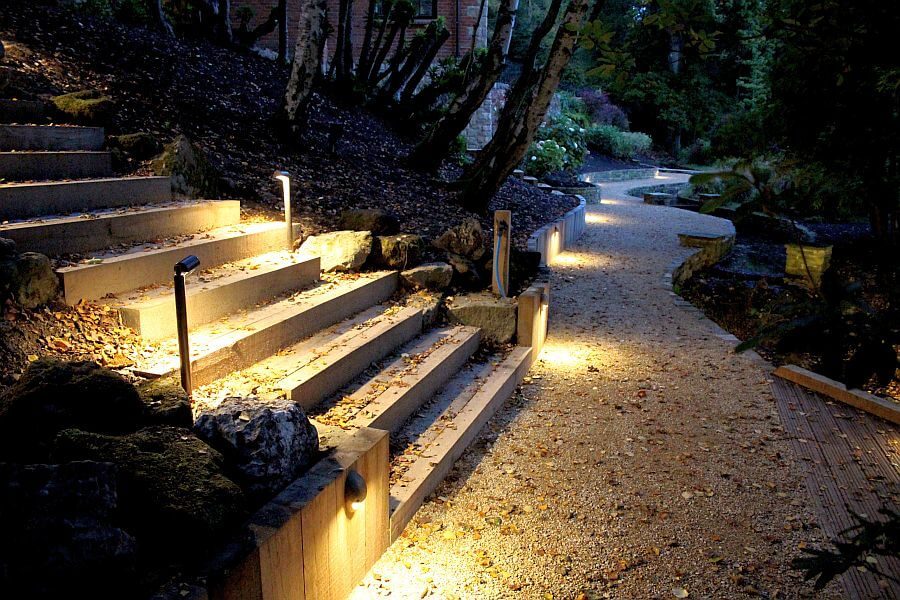

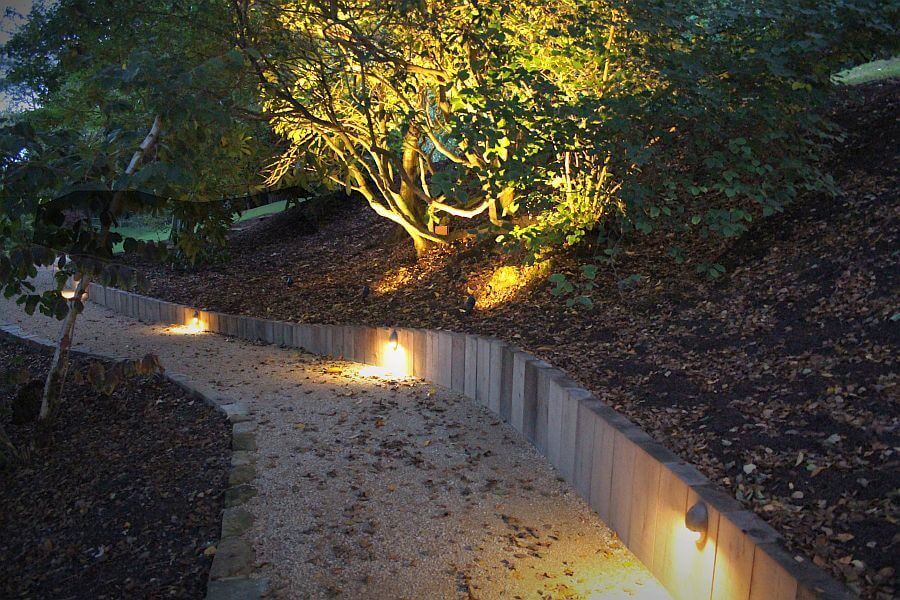

The Hunza Mouse Lite is a solid bronze or solid 316 stainless steel luminaire for surface mounting. A versatile product that can be used in many ways; mounted horizontally for path lighting or deck lighting; mounted vertically for downlighting over a doorway or uplighting a wall mounted feature.

The shape is pleasing to the eye and blends unobtrusively into any situation. A space in the wall behind the luminaire is not required for a cable connection due to the design which includes a cable junction cavity.

Individually cast in bronze, each luminaire has a unique finish and identity and the 316 Stainless Steel has a smooth machined finish both with frosted tempered glass lens and high temperature gasket.

These low voltage luminaires are suitable for use with a G4 bi-pin lamp – 5, 10, 20 watt and is supplied with 20 watt a high quality European lamp.

Suitable for use with PureLED or retro fit LED lamps.

Finishes [?]

Specifications

LED Chip: Cree XPG-3 Plug and Play field replaceable LED board
Output: 120 Lumens @ 700mA
Lumens Per Watt: 60 Lumens @ 2 watts
Colour Temperature: 2700K, 3000K, 4000K
CRI Warm White (3000°K): 85+ Standard, 90+ Optional
Beam Angles: 120°
Ingress Protection: IP66
Standards: AS/NZS 61046, EN60598, UL 1838, 2108, 1598, CSA C22.2 No. 250.7, 250.0-08, CE
Recommended Power Supply: Remote (Series) Driver, Retro 110/240 volt driver
