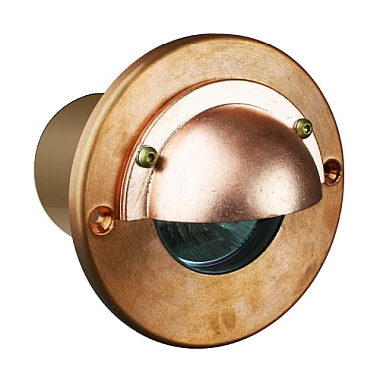

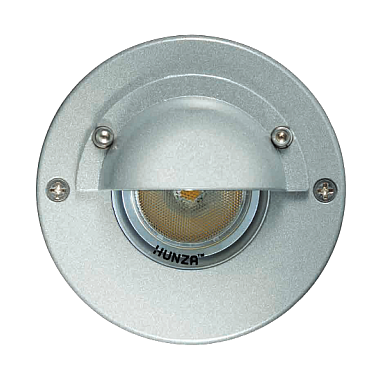

Hunza Step Lite Eyelid

The Hunza Step Lite Eyelid has been designed to be installed in the side wall of outside steps. The eyelid shades 50% of the lamp therefore eliminating any upward glare. Step lighting is an important part of any exterior lighting project for both safety and aesthetic purposes.

Solidly constructed from 63.5 x 10mm thick aluminium with a UV stable powdercoated finish or solid copper, complete with clear tempered glass lens and silicon gaskets. The standard low voltage products are suitable for use with an MR16 – 20 watt lamp and is supplied with a high quality European lamp.

The Eyelid is secured to the flange by two screws. As standard the fitting will be supplied with mounting holes. Although, if a canister is to be used there would be no need for the holes in the flange. Hunza mounting canisters provide an efficient and professional method of installing Hunza exterior lighting luminaires. The internal O-rings also make the installed luminaires difficult to remove, therefore making them harder to steal; a priceless accessory for public installations.

Suitable for use with PureLED or retro fit LED lamps.

Finishes [?]

Eco Matt Powdercoat Colours [?]

Specifications

LED Chip: Cree MTG-2 Plug and Play field replaceable PCB boards
Output: 600 lumens @ 1050mA
Lumens Per Watt: 100 Lumens @ 6 watts
Colour Temperature: 2700K, 3000K, 4000K
CRI Warm White (3000°K): 85+ Standard, 90+ Optional
Beam Angles: 15°, 25°, 38°, 60°
Ingress Protection: IP67
Standards: AS/NZS 61046, UL 1838, CSA C22.2 No. 250.7
Recommended Power Supply: Remote (Series) Driver, Retro 110/240 volt driver

Downloads

Step Lighting Range


Step Lite Eyelid Effects
