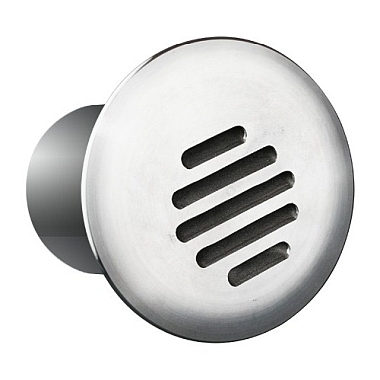

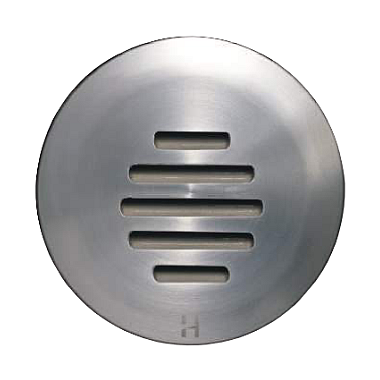

Hunza Step Lite Louvre

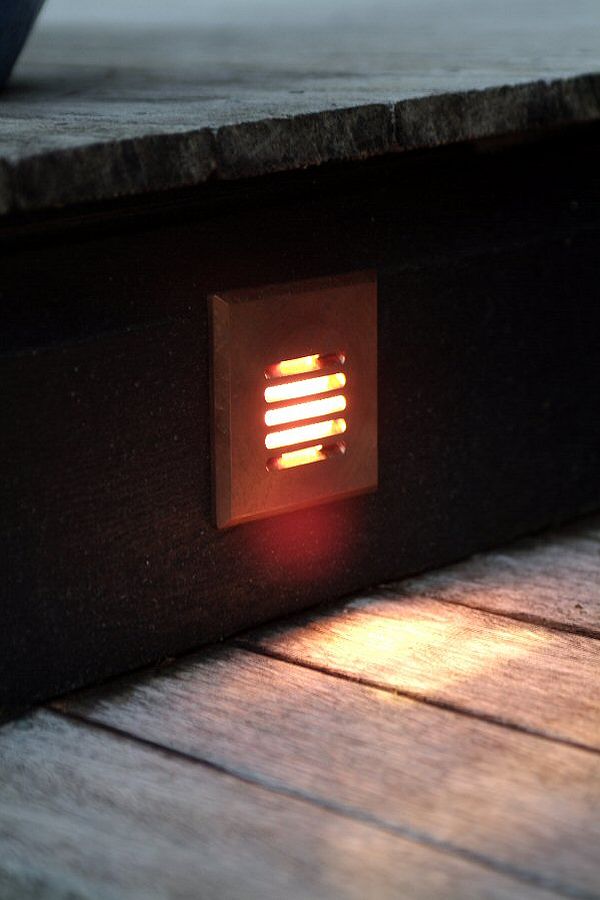

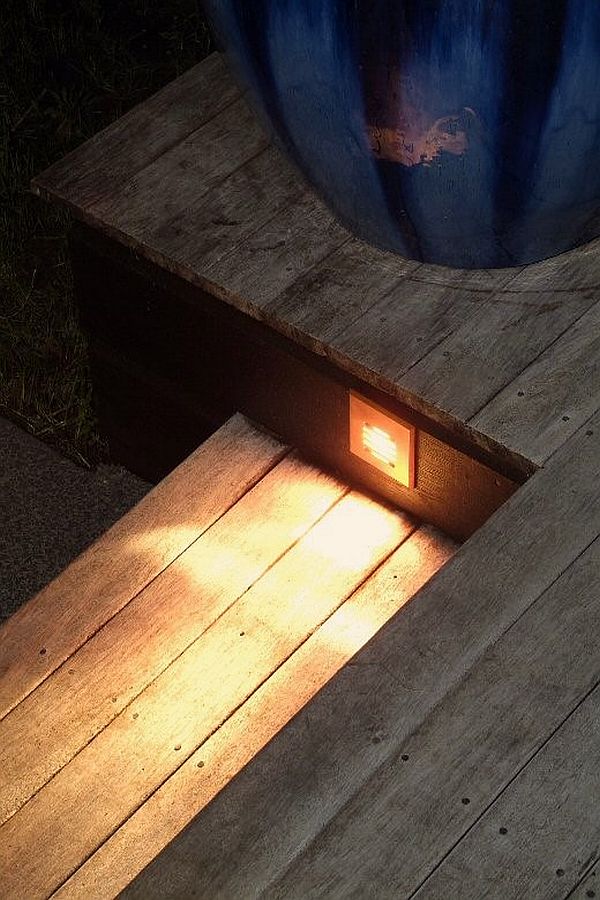

The Hunza Step Lite Louvre has a 88mm diameter flange with a thickness of only 3mm giving this Hunza Steplighting product a ‘flush to the surface’ look with no protrusions. The Louvre design shades the face of the lamp, so the Step Lite Louvre is an ideal product for installing into a step-face.

The body is machined from 9mm solid copper or 316 stainless steel, it has a tempered glass lens with high temperature silicon gaskets and is supplied with a maximum 20 watt lamp.

The standard low voltage luminaires are suitable for use with an MR16 – 20 watt lamp (max) and is supplied with a high quality European lamp.

Alternatively a 8 watt self ballasted 240 volt fluorescent option is available which offers excellent light output (comparative to a 40w incandescent lamp), low energy usage, long lamp life and very low heat generation this changes the luminaire to an IP66 rating.

The Step Lite has mounting holes as standard, but if you install using a canister there would be no need. Hunza mounting canisters provide an efficient and professional method of installing Hunza exterior lighting luminaires. The internal O’rings also make the installed luminaires difficult to remove, therefore making them harder to steal; a priceless accessory for public installations.

Lifetime Warranty on Lens Breakage


Power Supply

Light Ideas T-50 or Hunza Buriable IG20 safety isolating transformer (single installation), multi installation with any of the Light Ideas transformer range or Hunza IG safety isolating transformers, alternatively the Hunza Wall Mount series WMl00 – WM3OO Double Insulated Safety Isolating Transformers.

Available Options & Finishes

Copper, 316L Stainless Steel
SLLU Step Lite
SLLU-FL Step Lite 240v Fluorescent

Accessories

CJK150 – Cable Joint Kit (available in single kits or packs of 5)
SL/CAN-A – Aluminium Step Lite Canister
CAN-SS – 316 stainless steel Step Lite Canister
SL/FL/CAN-FL – Canister for Step Light/Floor Light Fluorescent
Save energy and fit one of our LED lamps


Step Lighting Range

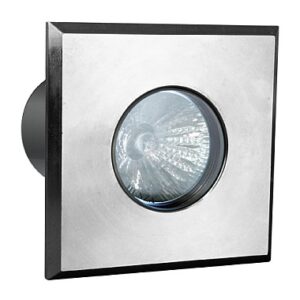

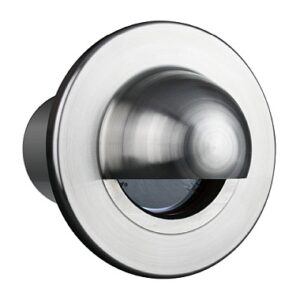

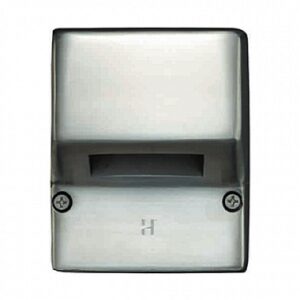

Hunza Step Lite Hunza Tilting Step Lite Hunza Step Lite Square Hunza Step Lite Eyelid Hunza Step Lite Low Lux Hunza Step Lite Louvre Hunza Step Lite Louvre Square Hunza Step Lite Solid Eyelid Hunza Step Lite Solid Eyelid Square Hunza Step Lite Square On Square Hunza Mouse Lite Hunza Mouse Lite Square Hunza Mouse Lite LED
