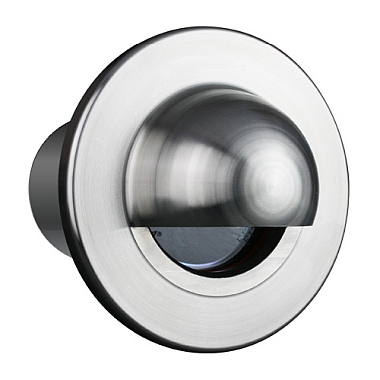

Hunza Step Lite Solid Eyelid

The Hunza Step Lite Solid Eyelid flange has a smooth machined finish without mounting holes to disrupt the elegant line of the luminaire and is designed to fit into a mounting canister.

Step lighting is an important part of any exterior lighting project for both safety and aesthetic purposes. The eyelid masks two thirds of the lamp face, eliminating any upward glare.

The body is machined from 63.5 x 10mm and the flange from a solid block of aluminium 88mm x 88mm aluminium with a UV stable powder coated finish (standard colours bronze, green, matt black, silver and white), or solid copper, or 316 stainless steel, clear tempered glass lens and high temperature silicon gaskets.

The standard low voltage luminaires are suitable for use with an MR16 – 20 watt lamp (max) and is supplied with a high quality European lamp.

Alternatively a 8 watt self ballasted 240 volt fluorescent option is available which offers excellent light output (comparative to a 40w incandescent lamp), low energy usage, long lamp life and very low heat generation this changes the luminaire to an IP66 rating.

The Step Lite has mounting holes as standard, but if you install using a canister there would be no need. Hunza mounting canisters provide an efficient and professional method of installing Hunza exterior lighting luminaires. The internal O’rings also make the installed luminaires difficult to remove, therefore making them harder to steal; a priceless accessory for public installations.

Lifetime Warranty on Lens Breakage


Power Supply

Light Ideas T-50 or Hunza Buriable IG20 safety isolating transformer (single installation), multi installation with any of the Light Ideas transformer range or Hunza IG safety isolating transformers, alternatively the Hunza Wall Mount series WMl00 – WM3OO Double Insulated Safety Isolating Transformers.

Available Options & Finishes

Copper, 316L Stainless Steel and Powdercoated Aluminium:
SLS Step Lite Solid Eyelid
SLS-FL Step Lite Solid Eyelid 240v Fluorescent

Accessories

CJK150 – Cable Joint Kit (available in single kits or packs of 5)
SL/CAN-A – Aluminium Step Lite Canister
CAN-SS – 316 stainless steel Step Lite Canister
SL/FL/CAN-FL – Canister for Step Light/Floor Light Fluorescent
Save energy and fit one of our LED lamps

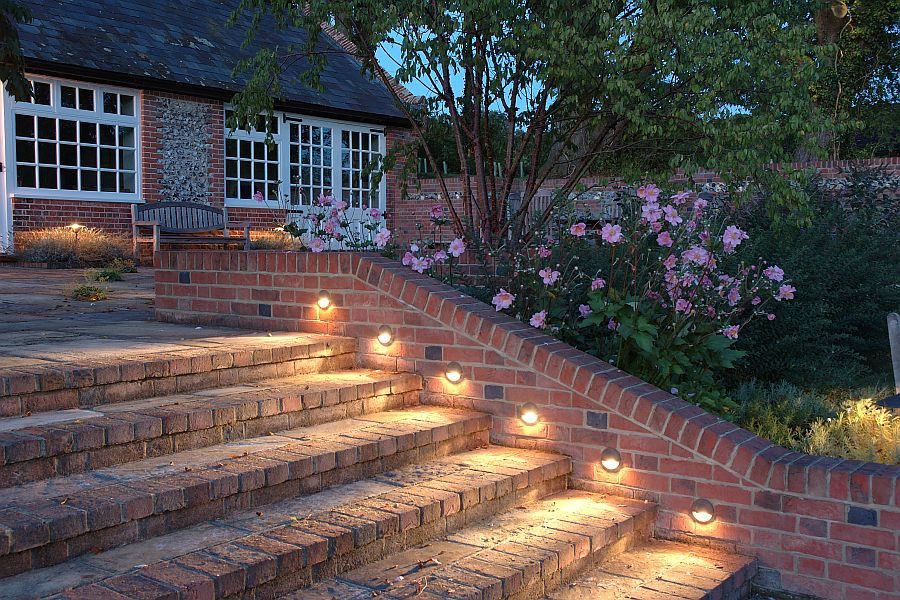

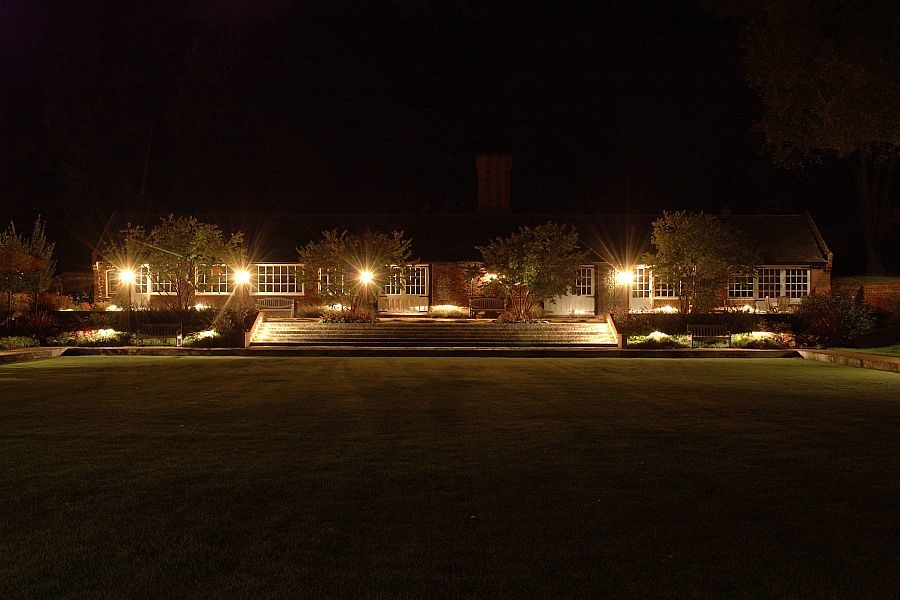

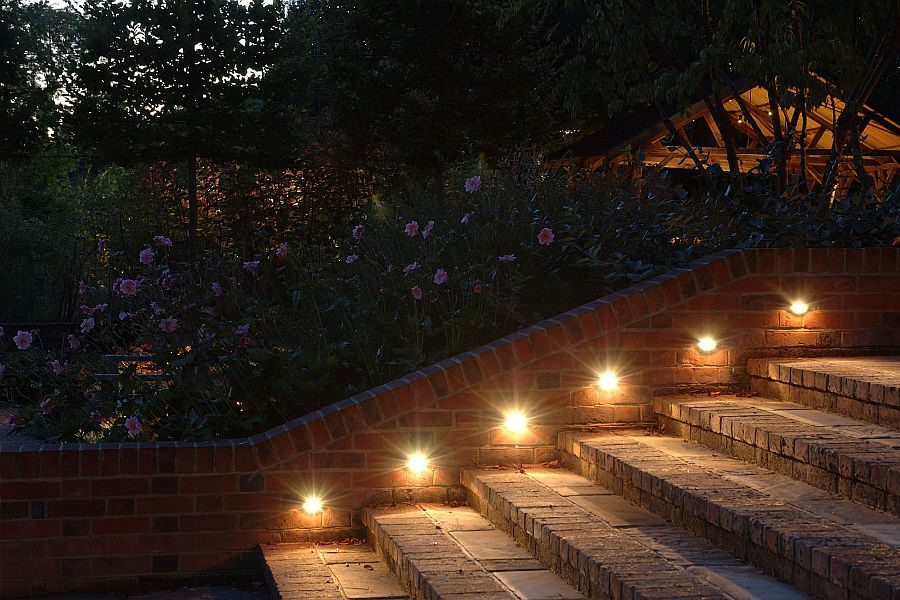

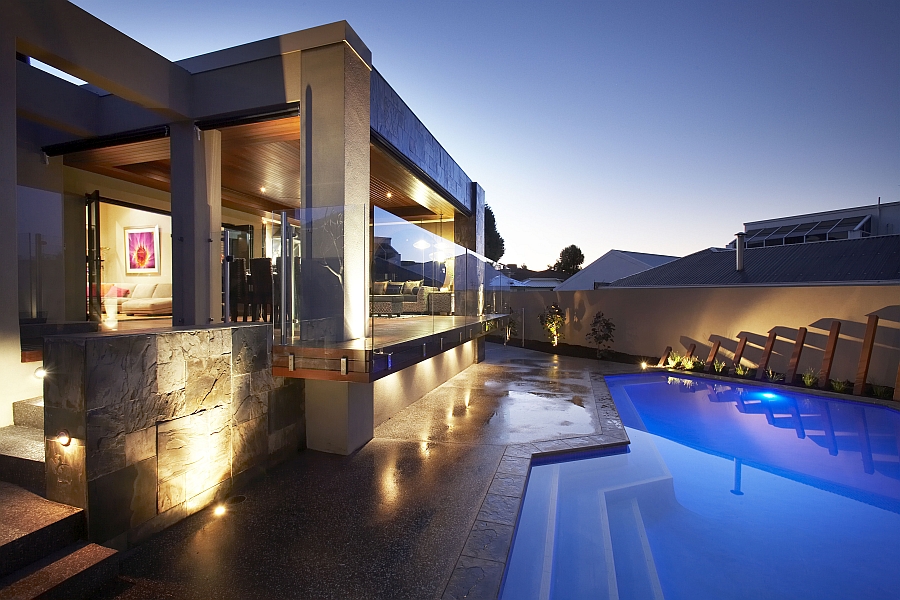

Step Lite Solid Eyelid Effects

Step Lighting Range

Hunza Step Lite Hunza Tilting Step Lite Hunza Step Lite Square Hunza Step Lite Eyelid Hunza Step Lite Low Lux Hunza Step Lite Louvre Hunza Step Lite Louvre Square Hunza Step Lite Solid Eyelid Hunza Step Lite Solid Eyelid Square Hunza Step Lite Square On Square Hunza Mouse Lite Hunza Mouse Lite Square Hunza Mouse Lite LED
