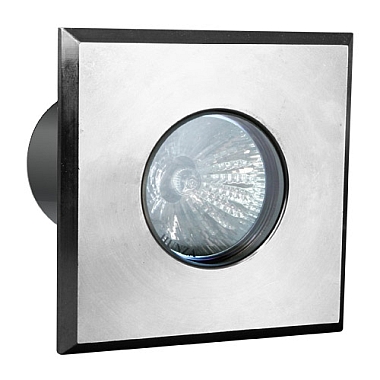

Hunza Step Lite Square

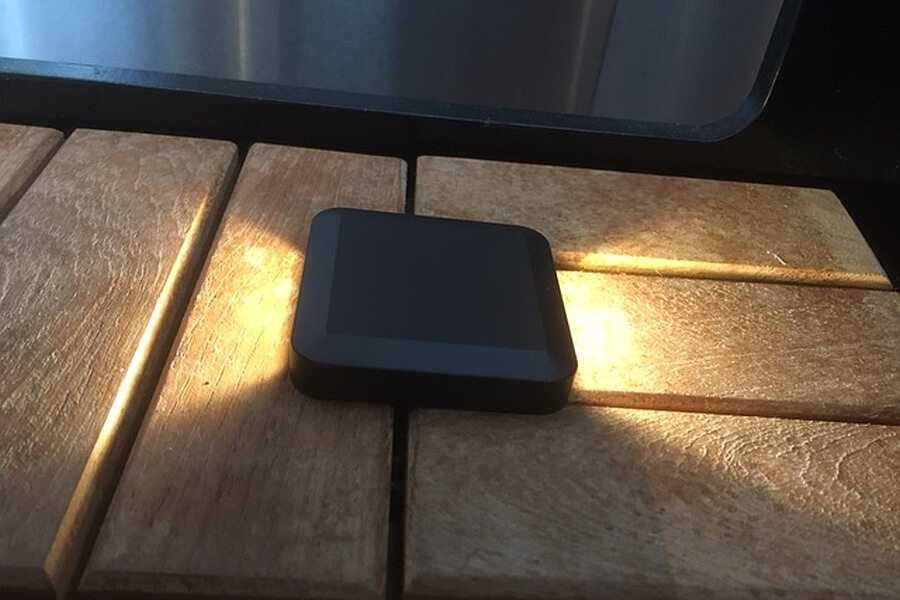

The Hunza Step Lite Square is designed with a 88mm x 88mm square flange for flush mounting into masonry, stone or wood. For steps lighting and ground level horizontal lighting, for example, driveway lighting or exterior paved areas. Alternatively use as a recessed up lighter!

Machined from – body 63.5 x 10mm and flange from 88mm x 88mm aluminium with a UV stable powder coated finish (standard colours bronze, green, matt black, white and silver) or solid copper or 316L stainless steel, tempered glass lens and high temperature silicon gaskets.

The standard low voltage products are suitable for use with an MR16 – 20 watt lamp and is supplied with a high quality European lamp.

Alternatively a 8 watt self ballasted 240 volt fluorescent option is available which offers excellent light output (comparative to a 40w incandescent lamp), low energy usage, long lamp life and very low heat generation this changes the luminaire to an IP66 rating.

Hunza mounting canisters provide an efficient and professional method of installing Hunza exterior lighting luminaires. The internal O’rings also make the installed luminaires difficult to remove, therefore making them harder to steal; a priceless accessory for public installations.

Lifetime Warranty on Lens Breakage


Power Supply

Light Ideas T-50 or Hunza Buriable IG20 safety isolating transformer (single installation), multi installation with any of the Light Ideas transformer range or Hunza IG safety isolating transformers, alternatively the Hunza Wall Mount series WMl00 – WM3OO Double Insulated Safety Isolating Transformers.

Available Options & Finishes

Copper, 316L Stainless Steel and Powdercoated Aluminium:
SL-SQ Step Lite Square
SL-SQ-FL Step Lite Square 240v Fluorescent

Accessories

CJK150 – Cable Joint Kit (available in single kits or packs of 5)
SL/CAN-A – Aluminium Step Lite Canister
CAN-SS – 316 stainless steel Step Lite Canister
SL/FL/CAN-FL – Canister for Step Light/Floor Light Fluorescent
Save energy and fit one of our LED lamps
