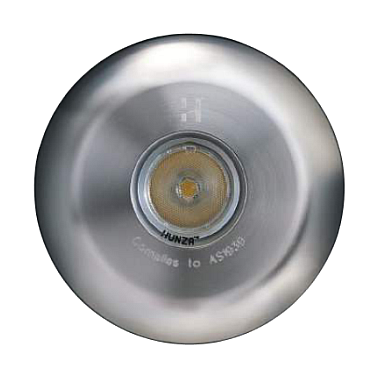

Hunza Pool Lite

Hunza Pool Lite

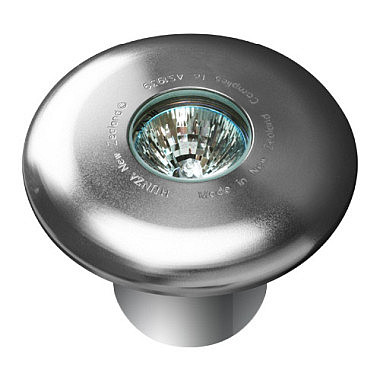

The Hunza Pool Lite is machined from 9mm thick marine grade, 316 stainless steel and is electro-polished to increase it’s corrosion protection by up to 33%.

This fully waterproof light is supplied with a tempered glass lens, high temperature silicon gaskets, and an engineering grade PVC Wet Niche mounting canister. Also complete with 6 metres of submersible cable, 600mm of which can be coiled up inside the mounting canister, enabling lamp changing above the water line. Other lengths are available on request.

The luminaire is supplied with a 320mm Wet Niche PVC canister and secured by two O-rings. This means there are no mounting screws in the flange to spoil the aesthetics of the luminaire. This low voltage luminaire is suitable for use with MR16 – 20, 35 or 50 watt lamps and is supplied with a high quality European lamp.

This pool light can be installed in three different types of pool wall:

  • Fibreglass pools
  • Existing concrete pools
  • New concrete pools

NB: Out of balance pool chemicals may cause the fitting to corrode at a rapid rate. In the case of salt water an increase in water temperature of 10° will double the corrosion factor. 316 stainless steel is suitable for situations of up to 1000 parts per million of chloride. Where an automatic chlorinator is employed an excess amount of chlorine may be produced. Check with your Local Electrical Authority for pool zone installation regulations.

Suitable for use with PureLED or retro fit LED lamps.

Finishes [?]

Specifications

LED Chip: Cree XHP-50-2 Plug and Play field replaceable LED board
Output: 600 Lumens @ 700mA
Lumens Per Watt: 100 Lumens @ 6 watts
Colour Temperature: 2700K, 3000K, 4000K
CRI Warm White (3000°K): 90+
Beam Angles: 15°, 25°, 38°, 60°
Ingress Protection: IP68
Standards: AS/NZS 61046, UL 1838, 2108, CSA C22.2 No. 250.7, 250.0-08, CE
Recommended Power Supply: Remote (Series) Driver, Retro 110/240 volt driver
