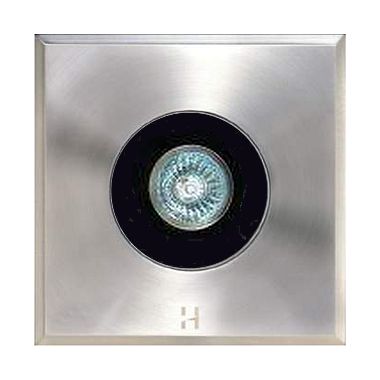

Hunza Floor Lite Dark Lighter Square

Hunza Floor Lite Dark Lighter Square

The Hunza Floor Lite Dark Lighter Square has a lamp that is recessed 50mm (2″) down in to the body of the luminaire, along with a hex cell louvre and a matt black interior the luminaire has superior glare control. While extremely robust these luminaires are not designed to be driven over.

The square shape of the luminaire makes it ideal for mounting in tiled areas and it is held into the aluminium mounting canister by two O-rings that allows it to be removed for lamp replacement, hence there are no mounting screws in the flange to spoil the aesthetics of the luminaire. There are five flange designs: Clover, Cross, Grill, Louvre (45° angle), Spot and is supplied with a mounting canister.

The Hunza PureLED system uses the latest Cree MTG-2 LED chips for maximum performance and long life. Power supply options include a choice of integral 12 volt driver or an external remote driver. The PureLED system incorporates an innovative Plug-and-Play system for easy replacement or upgrade of either the LED engine or integral driver. Four beam angles and a choice of a Warm or Cool White colour temperatures are available.

Suitable for use with PureLED or retro fit LED lamps.

Finishes [?]

Specifications

LED Chip: Cree XHP-50-2 Plug and Play field replaceable LED board
Output: 600 lumens @ 1050mA
Lumens Per Watt: 100 lumens @ 6 watts
Colour Temperature: 2700K, 3000K, 4000K
CRI Warm White (3000°K): 90+
Beam Angles: 15°, 25°, 38°, 60°
Ingress Protection: IP67
Standards: AS/NZS 61046, UL 1838, 2108, CSA C22.2 No. 250.7, 250.0-08, CE
Recommended Power Supply: Remote (Series) Driver, Retro 110/240 volt driver
