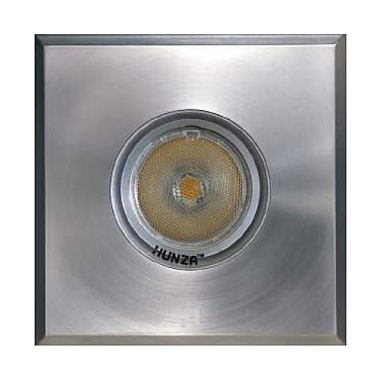

The Hunza Floor Lite Square range has an 88mm diameter flange with a thickness of only 7mm giving these Floor-lighting products a ‘sleek and stylish’ look. These luminaires can be walked over without fear of damage, (Although extremely robust, these luminaires are not designed to be driven over).
There are five flange designs available:
A) Clover #CL B) Grill #GR C) Louvre #LU (45 degree angle) D) Spot #SP E) Cross #CR
The luminaire is held into the aluminium mounting canister by two ‘O’ rings that allows the luminaire to be removed for lamp replacement, hence there are no mounting screws in the flange to spoil the aesthetics of the luminaire. This luminaire comes complete with an aluminium mounting canister.
This low voltage fitting is suitable for use and supplied with a MR16 – 20 watt (max) high quality European 5000 hour lamp.
A 8 watt self ballasted 240 volt fluorescent option is available which offers excellent light output (comparative to a 40w incandescent lamp), low energy usage, long lamp life and very low heat generation this changes the luminaire to an IP56 rating.
Lifetime Warranty on Lens Breakage
Light Ideas T-20 or Hunza Buriable IG20 safety isolating transformer (single installation), multi installation with any of the Light Ideas transformer range or Hunza IG safety isolating transformers, alternatively the Hunza Wall Mount series WMl00 – WM3OO Double Insulated Safety Isolating Transformers.
Available Options & Finishes
316L Stainless Steel (and Copper D-Spot only)
FL/#####-SQ Floor Lite Square
FL/#####-FL-SQ Floor Lite Fluorescent Square
CJK150 – Cable Joint Kit (available in single kits or packs of 5)
HCL – Hex Cell Louvre
Depending upon your installation, you may need a Canister
Save energy and fit one of our LED lamps
