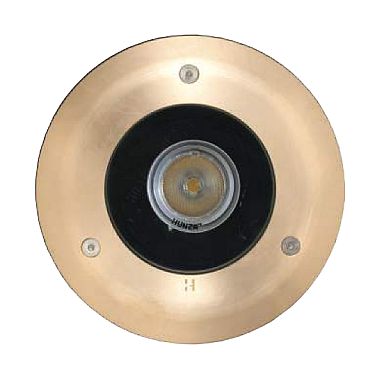

Hunza Lawn Lite Deck Mount

The Hunza Lawn Lite Deck Mount version has been specifically designed for effortless installation into timber decks. Having a smooth low profile of only 10mm, the Lawn Lite deck Mount is ideal for deck lighting.

Designed so the lamp can be directed up to 20 degrees, without the need to remove the fitting from the deck, and having a the three vandal-resistant Allen-head screw fixing system that attaches the flange to the body of the luminaire, this is a invaluable luminaire for any exterior lighting project.

The Lawn Lite Deck Mount has a “Flush Fit” lens which stops water pooling and depositing dirt on the lens. It is solidly constructed with a solid bronze or 316 stainless steel flange.

Note: Deck Lite is not suitable for driving over.

This low voltage luminaire is suitable for use with an MR16 – 20 ,35 or 50 watt lamp and is supplied with a high quality 20 watt European lamp.

Lifetime Warranty on Lens Breakage


Power Supply

Light Ideas T-50 or Hunza Buriable IG20 safety isolating transformer (single installation), multi installation with any of the Light Ideas transformer range or Hunza IG safety isolating transformers, alternatively the Hunza Wall Mount series WMl00 – WM3OO Double Insulated Safety Isolating Transformers.

Available Options & Finishes

316L Stainless Steel or Solid Bronze
LLDMV Lawn Lite Deck Mount
LLDMV/GU Lawn Lite Deck Mount GU10

Accessories

CJK150 – Cable Joint Kit (available in single kits or packs of 5)
LENS/LLSTEP – Frosted Lens

Dimensions

Lawn Lite Deck Mount

Downloads

Lawn Lite Deck Mount.pdf *
Lawn Lite Deck Mount PureLED.pdf

* Modified for the UK & European market

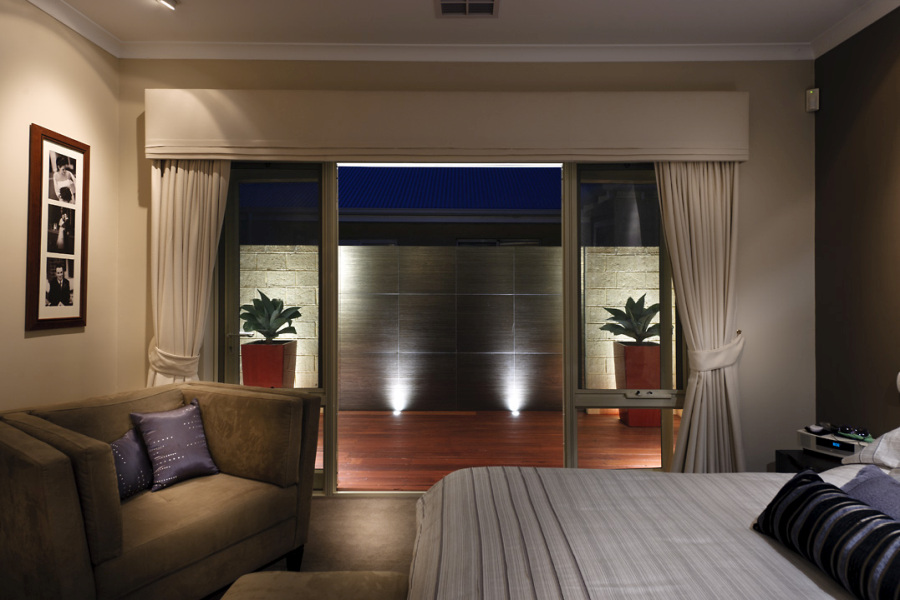

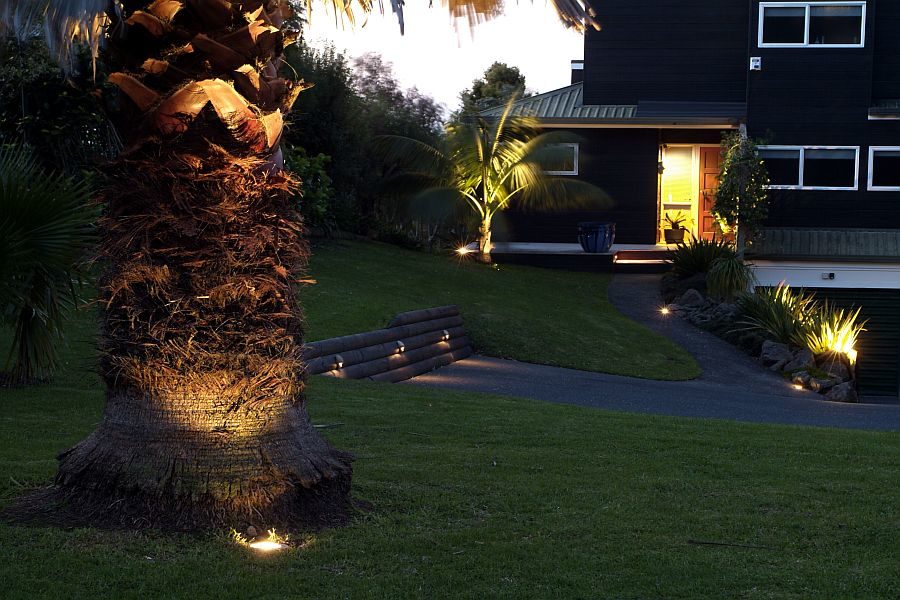

Lawn Lite Deck Mount Effects
