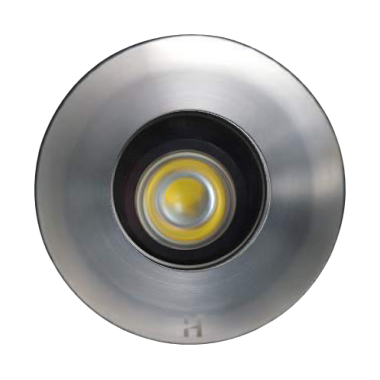

Hunza Tilting Floor Lite

The Hunza Tilting Floor Lite is unique to Light Ideas and allows 360° rotation and 12° tilt from the centre. The spherical gimbal allows infinite beam correction for uneven surfaces and directional adjustment for glare control.

With an extremely low profile (3mm) it can be walked on without damaging the luminaire. While extremely robust these luminaires are not designed to be driven over.

The luminaire is held into the aluminium mounting canister by two O-rings that allows the luminaire to be removed for lamp replacement, hence there are no mounting screws in the flange to spoil the aesthetics of the luminaire. There are five flange designs: Clover, Cross, Grill, Louvre (45° angle), Spot and is supplied with a mounting canister.

The Hunza PureLED system uses the latest Cree MTG-2 LED chips for maximum performance and long life. Power supply options include a choice of integral 12 volt driver or an external remote driver. The PureLED system incorporates an innovative Plug-and-Play system for easy replacement or upgrade of either the LED engine or integral driver. Four beam angles and a choice of a Warm or Cool White colour temperatures are available.

Suitable for use with PureLED only.

Finishes [?]

Specifications

LED Chip: Cree XHP-50-2 Plug and Play field replaceable LED board
Output: 600 lumens @ 1050mA
Lumens Per Watt: 100 lumens @ 6 watts
Colour Temperature: 2700K, 3000K, 4000K
CRI Warm White (3000°K): 90+
Beam Angles: 15°, 25°, 38°, 60°
Ingress Protection: IP67
Standards: AS/NZS 61046, UL 1838, 2108, CSA C22.2 No. 250.7, 250.0-08, CE
Recommended Power Supply: Remote (Series) Driver
