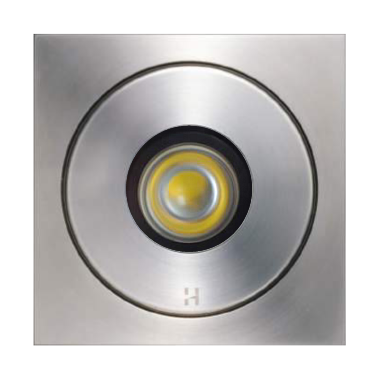

Hunza Tilting Flush Floor Lite Square

Hunza Tilting Flush Floor Lite Square

The Hunza Tilting Flush Floor Lite Square is unique to Light Ideas and allows 360° rotation and 12° tilt from the centre. The spherical gimbal allows infinite beam correction for uneven surfaces and directional adjustment for glare control.

The luminaire has been designed to mount flush with the level of a pathway, hotel floor or a building foyer. The Flush Fit lens stops water pooling and depositing dirt on the lens.

The square shape of the luminaire makes it ideal for mounting in tiled areas and there is no lip to trip over and the luminaire can be driven over or walked upon without being damaged ( maximum drive over speed 6 mph and maximum vehicle weight 1,500kg).

This low voltage fitting is suitable for use and supplied with a MR16 – 20 watt (max) high quality European 5000 hour lamp and its own canister.

Suitable for use with PureLED only.

Finishes [?]

Specifications

LED Chip: Cree XHP-50-2 Plug and Play field replaceable LED board
Output: 600 lumens @ 1050mA
Lumens Per Watt: 100 lumens @ 6 watts
Colour Temperature: 2700K, 3000K, 4000K
CRI Warm White (3000°K): 90+
Beam Angles: 15°, 25°, 38°, 60°
Ingress Protection: IP67
Standards: AS/NZS 61046, UL 1838, 2108, CSA C22.2 No. 250.7, 250.0-08, CE
Recommended Power Supply: Remote (Series) Driver
