LuxR Modux One Halo Pole Light

LuxR M1 Halo

The LuxR M1 Halo Pole Light is a slim, 25mm diameter pole fixture designed to provide a downward 360° wash of light, with little to no glare.

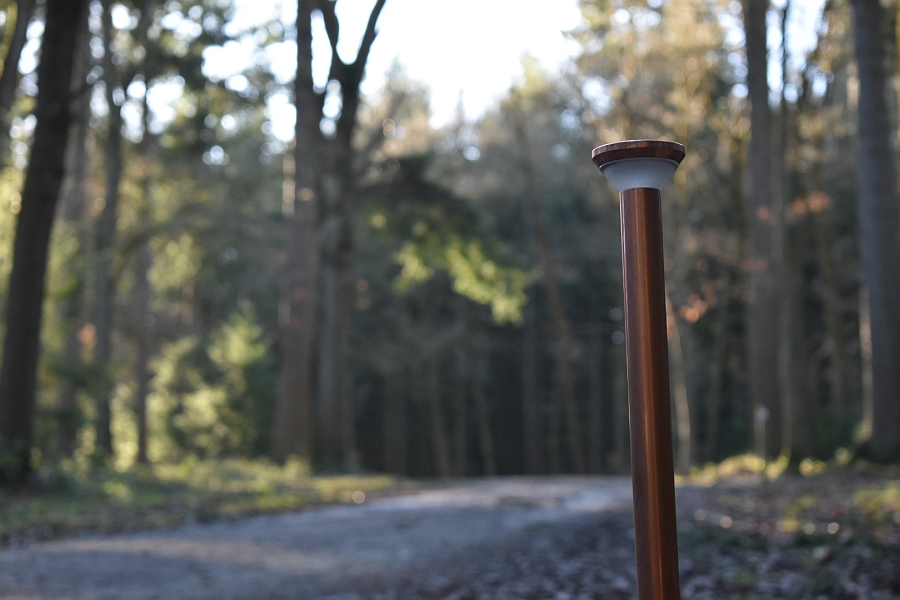

Ideal for lighting paths or down lighting small shrubs and grasses, the Halo Pole Light is available either with a spiked base for insertion directly into the ground, or with a flange mount option for installation on solid surfaces.

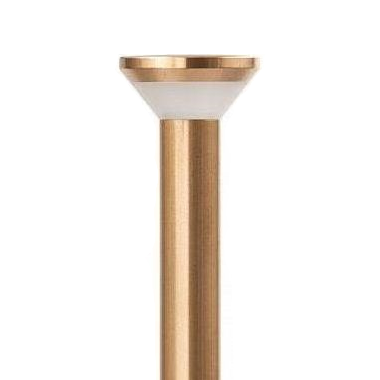

Precision machined in marine grade 316 stainless steel, copper, or powdercoated aluminium, the luminaire achieves IP68 water ingress rating for piece of mind.

The Cree 1 watt max LED can be easily replaced if required or substituted for a colour LED.

The regular pole length is 600mm however a custom length is available on request.

Finishes [?]

Eco Matt Powdercoat Colours [?]

LED Colours [?]

Specifications

Input Current: 350mA
Forward Voltage: 3Vf
Power: 1 Watt max
Efficacy: 70 Lm/W
Colours: 2700°K, 3000°K, 4000°K, 5000°K, Red, Green, Blue, Amber
CRI [3000°K]: 90+
Beam: 360° downward wash
Lens: Acrylic
Standards: IP68, LM79, CE UL1838
Light Engine: Plug-in dimmable module equipped with Cree XT-E LED
Driver: Remote constant current driver required

Downloads


Specifications

M1 Halo

Instructions

Modux Series Instructions

Photometrics

M1 Halo

M1 Halo

Modux One Range


Spotlights

Uplighters

Pole Lights

Accessories
