LuxR Modux Two Large Recessed Square Louvre

LuxR M2 Louvre

Large Recessed Square Louvre

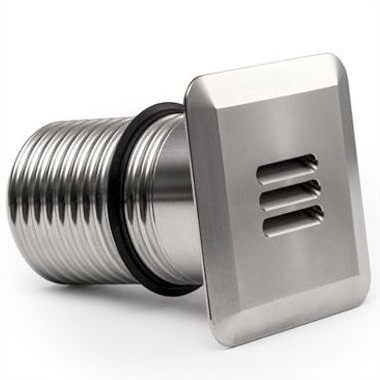

The LuxR M2 Large Recessed Square Louvre is a small low-voltage dimmable outdoor washer with a distance across the flats of 61mm, larger than the 53mm regular luminaire and useful when the mounting hole is generous or hole coverage is a priority.

Precision machined in marine grade 316 stainless steel, copper or powdercoated aluminium, the luminaire achieves IP68 water ingress rating for peace of mind.

The Cree 2 watt max LED can be easily replaced if required or substituted for a colour LED. The optic is also simple to change if you wish to alter the beam width.

Also available:

Finishes [?]

Eco Matt Powdercoat Colours [?]

LED Colours [?]

Specifications

Input Current: 700mA
Forward Voltage: 3Vf
Power: 2 Watt max
Efficacy: 85 Lm/W
Colours: 2700°K, 3000°K, 4000°K, 5000°K, Red, Green, Blue, Amber
CRI [3000°K]: 90+
Beam: Asymmetric wash
Lens: Frosted
Standards: IP68, LM79, CE UL1838
Light Engine: Plug-in dimmable module equipped with Cree XT-E LED
Driver: Remote constant current driver required
