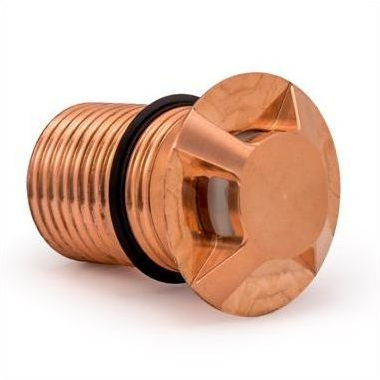

Modux Two Recessed Path Light

The Modux Two Recessed Path Light is a low-voltage dimmable outdoor path light that produces a wash distribution 5 degrees below the flange lip, and 10 degrees above.

It can be used to illuminate a wall surface, or as a path light wayfinder among other applications.

Precision machined in marine grade 316 stainless steel, copper or powdercoated aluminium, the luminaire achieves IP68 water ingress rating for peace of mind.

The Cree 2 watt max LED can be easily replaced if required or substituted for a colour LED. The optic is glass.

Also available in the Modux Four range.

Finishes

LED Colours









Specifications

Input Current: 700mA
Forward Voltage: 3Vf
Power: 2 Watt
Efficacy: 30 lm/W
Colours: 2700°K, 3000°K, 4000°K, 5000°K, Red, Green, Blue, Amber
CRI [3000°K]: 85
Step Beam: -5°, +10°
Optic: Glass
Standards: IP68, LM79, CE UL1838
Light Engine: Plug-in dimmable module equipped with Cree XT-E LED
Driver: Remote constant current driver required, or LuxR Integral 12V AC driver
Spec Sheet: Modux Two.pdf

Modux Two Range

Spike:

Pond:

Recessed:

Large Recessed:

Surface Mounted:
