LuxR Modux Two Recessed Steplight with Slot

LuxR M2 Steplight

Steplight with Slot

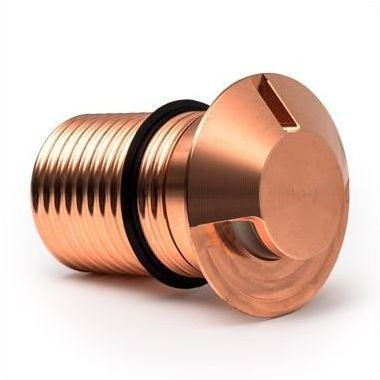

The LuxR M2 Recessed Steplight with Slot is a very small low-voltage dimmable step light that produces a wash distribution 5° below the flange lip, and 10° above.

In addition the narrow slot opposite the main beam produces a fine decorative accent. It can be used to illuminate the wall surface adjacent to the step treads, step treads themselves, above a doorway, or as a path light wayfinder among other applications.

Precision machined in marine grade 316 stainless steel, copper or powdercoated aluminium, the luminaire achieves IP68 water ingress rating for peace of mind.

The Cree 2 watt max LED can be easily replaced if required or substituted for a colour LED. The optic is also simple to change if you wish to alter the beam width.

Also available:

Finishes [?]

Eco Matt Powdercoat Colours [?]

LED Colours [?]

Specifications

Input Current: 700mA
Forward Voltage: 3Vf
Power: 2 Watt max
Efficacy: 85 Lm/W
Colours: 2700°K, 3000°K, 4000°K, 5000°K, Red, Green, Blue, Amber
CRI [3000°K]: 90+
Beam: -5°, +10°
Lens: Glass
Standards: IP68, LM79, CE UL1838
Light Engine: Plug-in dimmable module equipped with Cree XT-E LED
Driver: Remote constant current driver required
