LuxR Modux Four Recessed Darklighter

LuxR M4 Darklighter / RGBW

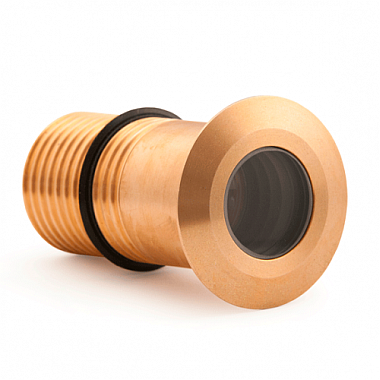

The LuxR M4 Recessed Darklighter is a very small low-voltage dimmable outdoor uplighter typically producing 170 lumens.

Precision machined in marine grade 316 stainless steel, copper or powdercoated aluminium, the luminaire achieves IP68 water ingress rating for peace of mind.

The Cree 4 watt max LED can be easily replaced if required. The optic is also simple to change if you wish to alter the beam width.

RGBW

Precision machined in marine grade 316 stainless steel only LuxR is now able to offer their highly successful Modux Four range of luminaires with integrated Red, Green, Blue, White colour changing LED.

Also available:

Finishes [?]

Eco Matt Powdercoat Colours [?]

LED Colours [?]

Specifications

Input Current: 700mA
Forward Voltage: 6Vf
Power: 4 Watt max
Efficacy: 90 Lm/W
Colours: 2700°K, 3000°K, 4000°K, 5000°K
CRI [3000°K]: 90+
Beam: 12°
Lens: Clear
Standards: IP68, LM79, CE UL1838
Light Engine: Plug-in dimmable module equipped with Cree XT-E LED
Driver: Remote constant current driver required

RGBW


Precision machined in marine grade 316 stainless steel only LuxR is now able to offer their highly successful Modux Four range of luminaires with integrated Red, Green, Blue, White colour changing LED.This system uses DMX signal protocol and DMX-spec cabling. The topology employed to connect the LuxR RGBW fittings together is a bussed (a kind of parallel arrangement) network. Technical notes on bussed networks can be found here. DMX is very fussy about cabling quality and we recommend you specify the required cable length for each luminaire ordered.

Finishes & LED Colours [?]

Input Current: 12-24V DC, DMX Data +, DMX Data -, Data Shield
Power: 4.5 Watt max
Colours: Neutral White 4000°K, Red, Green, Blue
Beam: Spot (20°), Medium (34°), Oval (48°+24°)
Lens: Clear, Frosted
Standards: IP68, LM79, CE, USITT DMX512-A
Light Engine: Plug-in dimmable module equipped with high power Cree 4×1 watt RGBW LED
