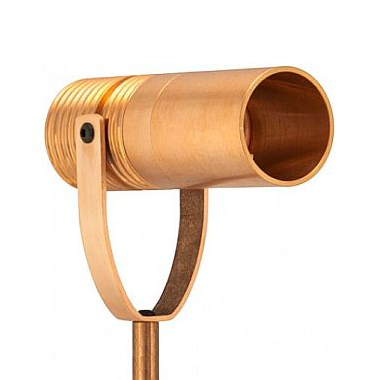

Modux Four Spike Spot with Snoot

The Modux Four Spike Spot with integrated snoot is a low-voltage dimmable outdoor spot light with a solid metal spike for installing into garden soil. The fully adjustable spot light produces 240 lumens.

Precision machined in marine grade 316 stainless steel, copper or powdercoated aluminium, the luminaire achieves IP68 water ingress rating for peace of mind.

The Cree 4 watt max LED can be easily replaced if required. The optic is also simple to change if you wish to alter the beam width (see specifications).

Hexcell louvre baffle is available.

Also available in the Modux Two range.


LED Colours

Modux Four RGBW Spike Spot with Snoot

LuxR is now able to offer their highly successful Modux Four range of luminaires with integrated Red, Green, Blue, White colour changing LED. This system uses DMX signal protocol and DMX-spec cabling. The topology employed to connect the LuxR RGBW fittings together is a bussed (a kind of parallel arangement) network. Technical notes on bussed networks can be found here. DMX is very fussy about cabling quality and we recommend you specify the required cable length for each luminaire ordered.

Finishes & LED Colours


Input Current: 700mA
Forward Voltage: 6Vf
Power: 4 Watt
Efficacy: 100 lm/W
Colours: 2700°K, 3000°K, 4000°K, 5000°K
CRI [3000°K]: 85
Beam [FWHM]: 12°, 26°, 36°, 74°
Glass Lenses: Clear, Frosted
Standards: IP68, LM79, CE UL1838
Light Engine: Plug-in dimmable module equipped with Cree MTG-2 LED
Driver: Remote constant current driver required, or LuxR Integral 12V AC driver
Spec Sheet: Modux Four.pdf
Exploded View.pdf

RGBW Specifications

Input: 12-24V DC , DMX Data+ , Data- , Data shield
Power Consumption: 4.5W per luminaire maximum (4 colours @ 100%)
Light Engine: Plugin dimmable module equipped with a high power Cree 4×1 watt RGBW LED
Beam [FWHM]: Spot 20°, Medium 34°, Oval 48°x24°
Cabling: Special hybrid cable comprising of : EIA-485 (aka RS-485) compliant 120 Ohm twisted pair with drain wire in a foil shield. A pair of marine grade tinned 0.75mm^2 DC power conductors. The product is supplied with a 3 metre (9.8 ft) cable.
Standards: IP68, LM79, CE , USITT DMX512-A
