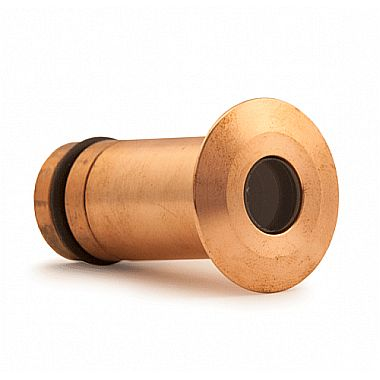

Modux Micro Dark Lighter

The Modux Micro Dark Lighter is a miniature low-voltage dimmable outdoor marker light, with optional canister.

Illumination is directed in a narrow band inclined upward. Ideal for marking boundaries and edges.

Precision machined in marine grade 316 stainless steel, copper or powdercoated aluminium, the luminaire achieves IP68 water ingress rating for peace of mind.

The Cree 1 watt max LED can be easily replaced if required or substituted for a colour LED.

Flange diameter: Ø20mm
Fitting depth: 48.5mm

Finishes

LED Colours








Specifications

Input Current: 60mA – 360mA max
Forward Voltage: 3Vf
Power: 1 Watt max
Efficacy: 64 Lm/W
Colours: 2700°K, 3000°K, 4000°K, 5000°K, Red, Green, Blue, Amber
CRI [3000°K]: 90+
Beam: 16°
Standards: IP68, LM79, CE UL1838
Light Engine: Plug-in dimmable module equipped with Cree XT-E LED
Driver: Remote constant current driver required
Spec Sheet: Modux Dark Lighter.pdf

Modux Micro Range

Spike:

Recessed:

Dark Lighter:
