Hunza Path Lite Design Change Notification

Now Supplied With The All New TIR Lens

Light Ideas are pleased to announce that all Hunza Path Lites will now be supplied with Hunza's brand new TIR Lens as standard.

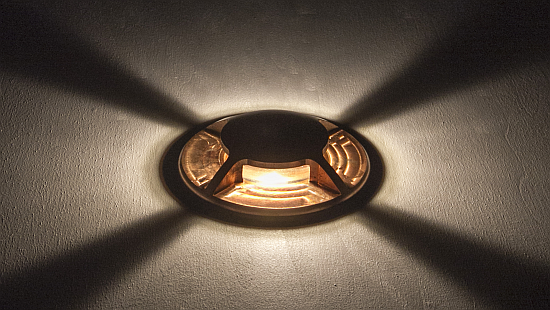

The TIR Lens - Total Image Reflector

The main benefit of Hunza's TIR Lens is how it dramatically improves light output on the horizontal plane, with the specially designed integral cone reflecting light outwards.


There's also the added feature of throwing light up to 10 degrees below the horizon plane, helping to accommodate for undulation in the ground.

The lens is made from 18mm thick toughened glass and it completely fills the void and now stops any soil or moisture from entering the top facet.

With this design change the lamp now needs to be an MR16 type lamp, or GU10 when using retro fit lamps.

PureLED luminaires will be supplied as standard in this version.


Special note about converting existing Path Lites

If you would like to convert the previous model fitted with a G4 capsule, you will first need to remove the white disk that holds the lamp holder in place, and then fit the MR16 lamp.

If you want to convert a PureLED luminaire previously supplied with the domened lens, then the heat sink will also need to be changed.


If you require further information please don't hesitate to get in touch.

Just send us an email via our website or give us a call on +44 (0) 1299 269 950.
