LuxR Modux One Saber Pole Light

LuxR M1 Saber

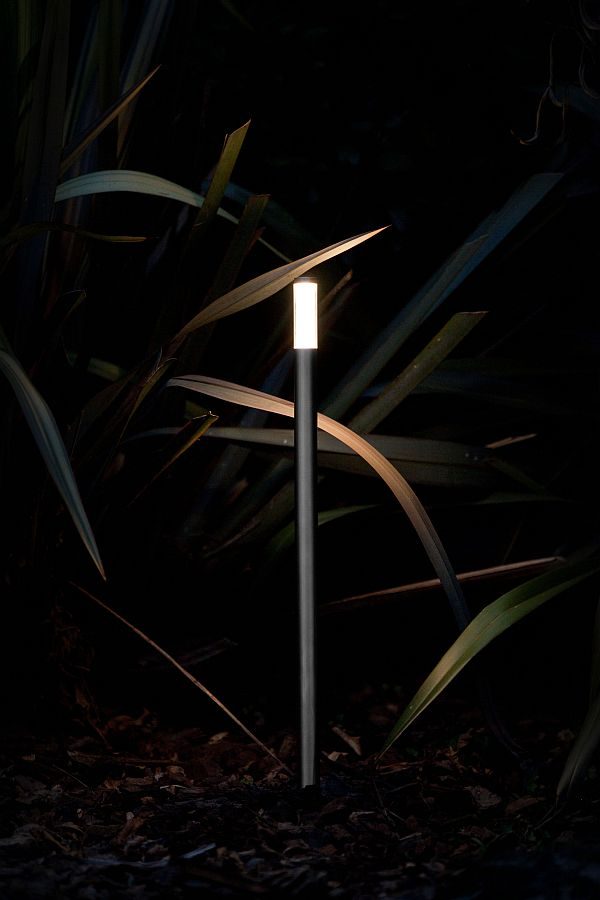

The LuxR M1 Saber Pole Light is a 25mm diameter miniature pole marker light producing plenty of light creating a 360° wash without any glare.

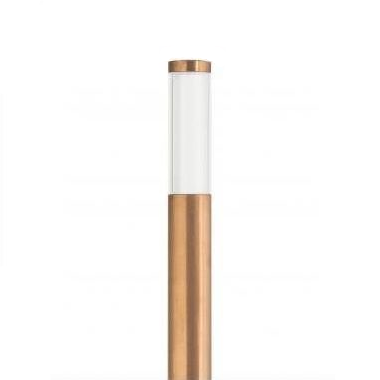

Precision machined in marine grade 316 stainless steel, copper, or powdercoated aluminium, the luminaire achieves IP68 water ingress rating for piece of mind.

The Cree 1 watt max LED can be easily replaced if required or substituted for a colour LED.

The regular pole length is 600mm however a custom length is available on request.

Finishes [?]

Eco Matt Powdercoat Colours [?]

LED Colours [?]

Specifications

Input Current: 350mA
Forward Voltage: 3Vf
Power: 1 Watt max
Efficacy: 35 Lm/W
Colours: 2700°K, 3000°K, 4000°K, 5000°K, Red, Green, Blue, Amber
CRI [3000°K]: 90+
Beam: 360° wash
Lens: Acrylic
Standards: IP68, LM79, CE UL1838
Light Engine: Plug-in dimmable module equipped with Cree XT-E LED
Driver: Remote constant current driver required

Downloads


Specifications

M1 Saber

Instructions

Modux Series Instructions

Photometrics

M1 Saber

M1 Saber
