LuxR Modux One Spike Spot with Glare Guard

LuxR M1 Spotlight

Spike Spot with Glare Guard

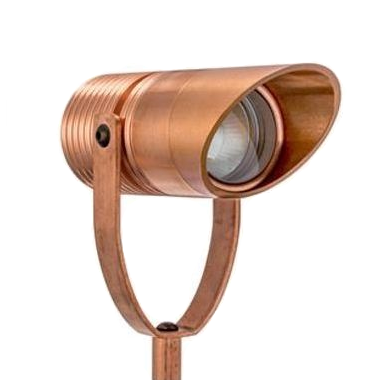

The LuxR M1 Spike Spot with Glare Guard is a very small low-voltage dimmable outdoor spot light with a solid metal spike for installing into garden soil.

Precision machined in marine grade 316 stainless steel, copper or powdercoated aluminium, the luminaire achieves IP68 water ingress rating for peace of mind.

The Cree 1 watt max LED can be easily replaced if required or substituted for a colour LED. The optic is also simple to change if you wish to alter the beam width.

Hexcell louvre baffle is available.

Also available:

Finishes [?]

Eco Matt Powdercoat Colours [?]

LED Colours [?]


Input Current: 350mA
Forward Voltage: 3Vf
Power: 1 Watt max
Efficacy: 80 Lm/W
Colours: 2700°K, 3000°K, 4000°K, 5000°K, Red, Green, Blue, Amber
CRI [3000°K]: 90+
Beam: 10°, 15°, 20°, 30°
Lens: Clear, Frosted
Standards: IP68, LM79, CE UL1838
Light Engine: Plug-in dimmable module equipped with Cree XT-E LED
Driver: Remote constant current driver required
