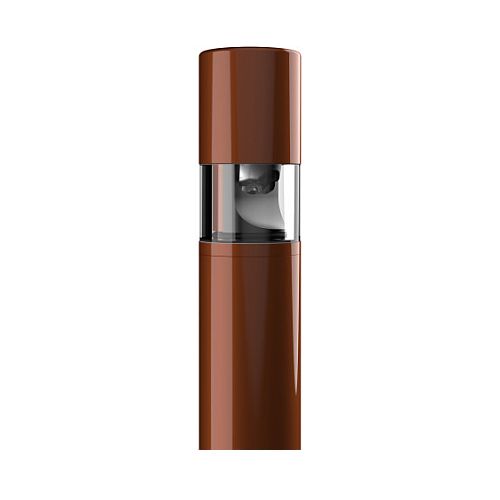

LuxR Modux One Wayfinder Pole Light

LuxR M1 Wayfinder

The LuxR M1 Wayfinder Pole Light is a 25mm diameter miniature pole marker light producing plenty of light creating an asymmetrical wash, without glare.

It has a truly unique optic that orients and produces its asymmetric light distribution in a perfect wash. No light is emitted above the horizontal meaning no glare. It is particularly suited to washing walls, paths, and low plantings.

The Cree 1 watt max LED can be easily replaced if required or substituted for a colour LED.

The regular pole length is 600mm however a custom length is available on request.

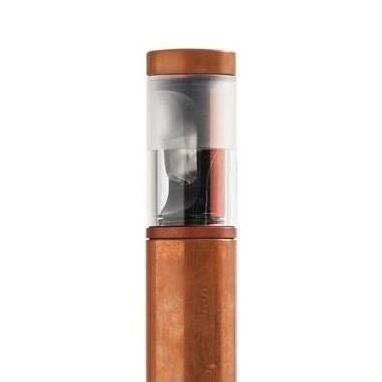

Finishes [?]

Eco Matt Powdercoat Colours [?]

LED Colours [?]

Specifications

Input Current: 350mA
Forward Voltage: 3Vf
Power: 1 Watt max
Efficacy: 80 Lm/W
Colours: 2700°K, 3000°K, 4000°K, 5000°K, Red, Green, Blue, Amber
CRI [3000°K]: 90+
Beam: Asymmetrical wash
Lens: PMMA
Standards: IP68, LM79, CE UL1838
Light Engine: Plug-in dimmable module equipped with Cree XT-E LED
Driver: Remote constant current driver required

Downloads


Specifications

M1 Wayfinder

Instructions

Modux Series Instructions

Photometrics

M1 Wayfinder

M1 Wayfinder

Modux One Range


Spotlights

Uplighters

Pole Lights

Accessories
width=”70″>

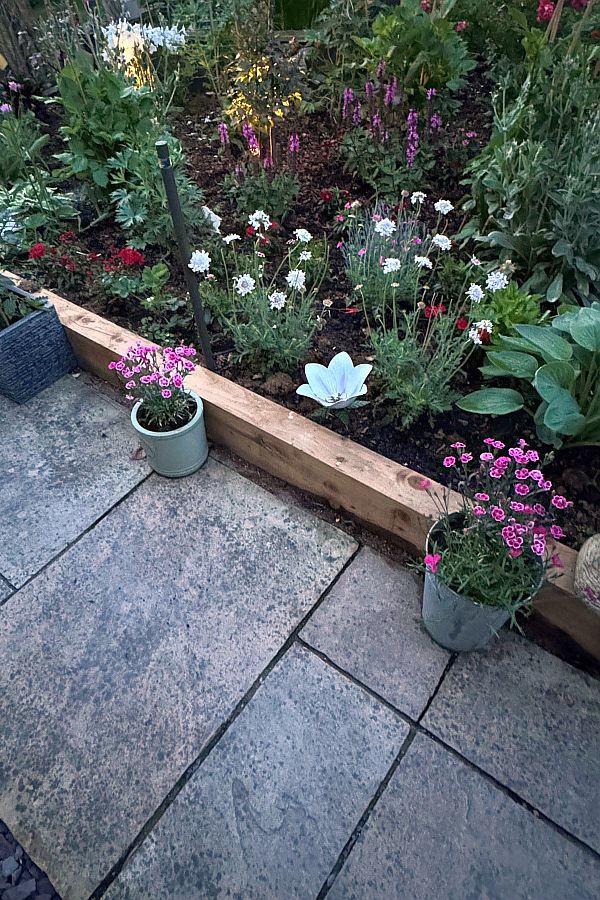

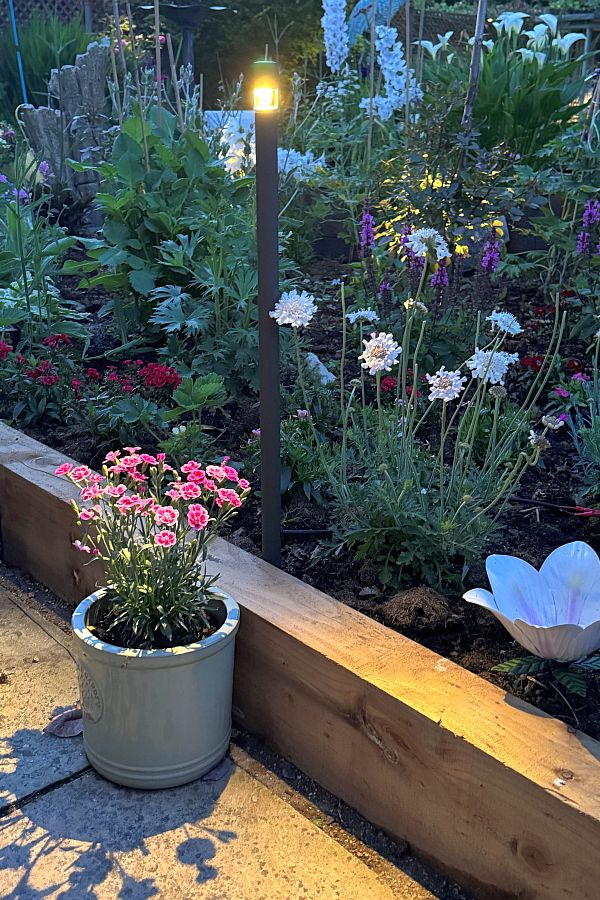

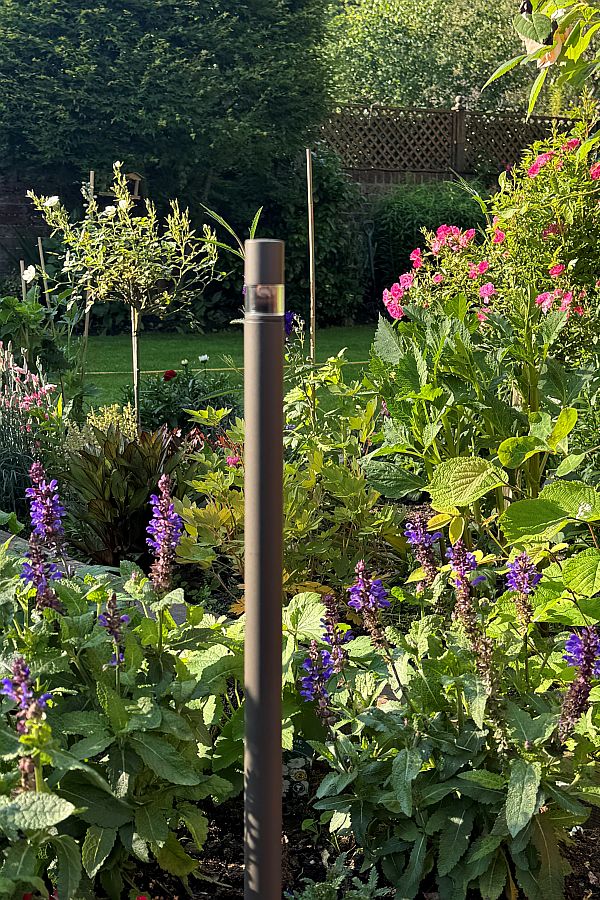

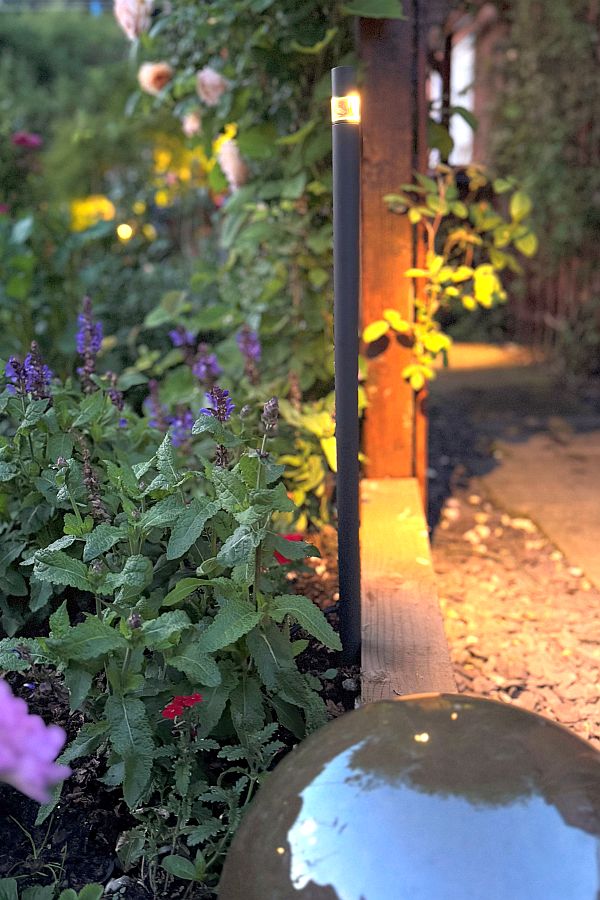

M1 Wayfinder Effects
