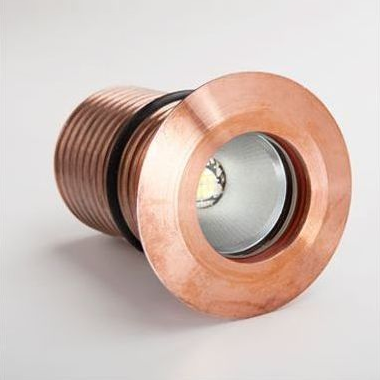

Modux Two Recessed Round

The Modux Two Recessed Round is a low-voltage dimmable outdoor uplighter producing 120 lumens.

Precision machined in marine grade 316 stainless steel, copper or powdercoated aluminium, the luminaire achieves IP68 water ingress rating for peace of mind.

The Cree 2 watt max LED can be easily replaced if required or substituted for a colour LED. The optic is also simple to change if you wish to alter the beam width (see specifications).

Hexcell louvre baffle, and an oval spreader beam is available.

Large Recessed Round version also available.

Also available in the Modux One & Modux Four ranges.

Finishes

LED Colours









Specifications

Input Current: 700mA
Forward Voltage: 3Vf
Power: 2 Watt
Efficacy: 60 lm/W
Colours: 2700°K, 3000°K, 4000°K, 5000°K, Red, Green, Blue, Amber
CRI [3000°K]: 85
Beam [FWHM]: 8°, 26°, 36°, 74°, 15°+40° Oval
Glass Lenses: Clear, Frosted, Hexcell louvre baffle
Standards: IP68, LM79, CE UL1838
Light Engine: Plug-in dimmable module equipped with Cree XT-E LED
Driver: Remote constant current driver required, or LuxR Integral 12V AC driver
Spec Sheet: Modux Two.pdf

Modux Two Range

Spike:

Pond:

Recessed:

Large Recessed:

Surface Mounted:
