LuxR Modux Two Recessed Square Louvre

LuxR M2 Louvre

Recessed Square Louvre

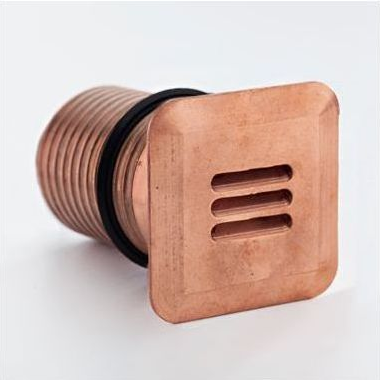

The LuxR M2 Recessed Square Louvre is a very small low-voltage dimmable outdoor washer producing an attractive wash of light, often used to illuminate stair treads. The stainless steel version is quite a nautical theme, while the copper version looks very much at home recessed into timber.

Precision machined in marine grade 316 stainless steel, copper or powdercoated aluminium, the luminaire achieves IP68 water ingress rating for peace of mind.

The Cree 2 watt max LED can be easily replaced if required or substituted for a colour LED. The optic is also simple to change if you wish to alter the beam width.

Also available:

Finishes [?]

Eco Matt Powdercoat Colours [?]

LED Colours [?]

Specifications

Input Current: 700mA
Forward Voltage: 3Vf
Power: 2 Watt max
Efficacy: 85 Lm/W
Colours: 2700°K, 3000°K, 4000°K, 5000°K, Red, Green, Blue, Amber
CRI [3000°K]: 90+
Beam: Asymmetric wash
Lens: Frosted
Standards: IP68, LM79, CE UL1838
Light Engine: Plug-in dimmable module equipped with Cree XT-E LED
Driver: Remote constant current driver required
