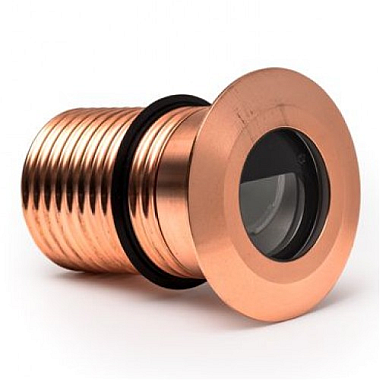

Modux Two Recessed Wall Washer

The LuxR Modux Two Recessed Wall Washer is a small low-voltage dimmable outdoor light for washing walls with a uniform light.

Designed primarily to be recessed into floors, its state of the art optic creates a subtle wash of light with excellent beam uniformity. It can also be mounted in walls to wash floor surfaces.

Just 58mm in diameter, the Modux 2 Wall Washer produces a light output of 130 lumens @ 2 watts and can be over-driven safely at 3 Watts maximum for more output.

The pin mounted Cree 2 watt max LED can be easily replaced if required or substituted for a colour LED.

The luminaire can be mounted very close to the wall and still achieve a good result.


LED Colours


Input Current: 700mA – 1050mA remote driver, 700mA integral driver max
Forward Voltage: 3Vf
Power: 2 Watt @ 700mA , 3Watt @ 1050mA
Efficacy: 66 lm/W
Colours: 2700°K, 3000°K, Red, Green, Blue, Amber
CRI [3000°K]: 85
Beam: Asymmetric wash
Glass Lenses: Clear
Standards: IP68, LM79, CE UL1838
Light Engine: Plug-in dimmable module equipped with Cree XT-E LED
Driver: Remote constant current driver required, or LuxR Integral 12V AC driver
Spec Sheet: Modux Two.pdf
Exploded View.pdf

Modux Two Range




Large Recessed:

Surface Mounted:
