LuxR Modux Micro Recessed Spot

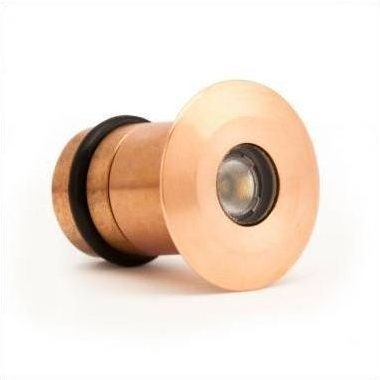

LuxR Micro Spot

The Micro Recessed Spot is a miniature low-voltage dimmable outdoor washer, with optional canister. Illumination is directed through four interchangable beam angles, ideal for marking boundaries, crosslighting paths and uplighting columns and walls.

Precision machined in marine grade 316 stainless steel or copper, the luminaire achieves IP68 water ingress rating for peace of mind.

The Cree 1 watt max LED can be easily replaced if required or substituted for a colour LED. The optic is also simple to change if you wish to alter the beam width.

Finishes [?]

LED Colours [?]

Specifications

Input Current: 60mA – 360mA max
Forward Voltage: 3Vf
Power: 1 Watt max
Efficacy: 70 Lm/W
Colours: 2700°K, 3000°K, 4000°K, 5000°K, Red, Green, Blue, Amber
CRI [3000°K]: 90+
Beam: 16°, 37°, 84°, 13°+40° Oval
Lens: Clear, Frosted
Standards: IP68, LM79, CE UL1838
Light Engine: Plug-in dimmable module equipped with Cree XT-E LED
Driver: Remote constant current driver required
