Hunza Ultra 35 Wall Spot

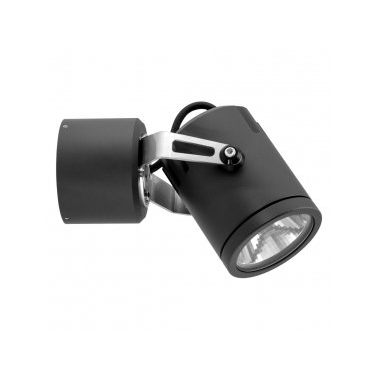

The Ultra 35 Wall Spot has been designed to be mounted on vertical surfaces. It can be used for wall washing, to provide directional light, and to highlight architectural features and structural elements. It has a fully adjustable head allowing 360° rotation and 0-120° elevation and can then be fixed in place using the inbuilt locking mechanism.

Finishes

Eco Matt Powdercoat Colours

LED Chip: Cree CXA 1830 Plug and Play field replaceable LED
Output: 2700 lumens @ 700mA
Lumens Per Watt: 100 lumens @ 26 watts
Colour Temperature: 2700K, 3000K, 4000K
CRI Warm White (3000°K): 80 Standard, 90+ Optional
Beam Angles: 13°, 20°, 25°, 34°
Ingress Protection: IP66
Standards: BS/EN 60598.2.2, UL 1598, CSA C22.2 No. 250.0, CE
Recommended Power Supply: Remote (Series) Driver, Retro 110/240 volt driver

Spec Sheets

Ultra 35 Wall Spot

Instructions

Ultra 35 Wall Spot

Photometrics

Ultra 35 Wall Spot 13°
Ultra 35 Wall Spot 20°
Ultra 35 Wall Spot 25°
Ultra 35 Wall Spot 34°

Ultra 35 Wall Spot 13°
Ultra 35 Wall Spot 20°
Ultra 35 Wall Spot 25°
Ultra 35 Wall Spot 34°
