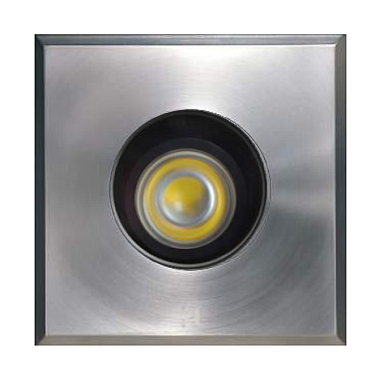

Hunza Tilting Floor Lite Square
The Hunza Tilting Floor Lite Square is unique to Light Ideas and allows 360° rotation and 12° tilt from the centre. The spherical gimbal allows infinite beam correction for uneven surfaces and directional adjustment for glare control.
With an extremely low profile (3mm) and can be walked on without damaging the luminaire. While extremely robust these luminaires are not designed to be driven over.
The square shape of the luminaire makes it ideal for mounting in tiled areas and it is held into the aluminium mounting canister by two O-rings that allows it to be removed for lamp replacement, hence there are no mounting screws in the flange to spoil the aesthetics of the luminaire. There are five flange designs: Clover, Cross, Grill, Louvre (45° angle), Spot and is supplied with a mounting canister.
The Hunza PureLED system uses the latest Cree MTG-2 LED chips for maximum performance and long life. Power supply options include a choice of integral 12 volt driver or an external remote driver. The PureLED system incorporates an innovative Plug-and-Play system for easy replacement or upgrade of either the LED engine or integral driver. Four beam angles and a choice of a Warm or Cool White colour temperatures are available.
Suitable for use with PureLED only.
|LED Chip:||Cree XHP-50-2 Plug and Play field replaceable LED board|
|Output:||600 lumens @ 1050mA|
|Lumens Per Watt:||100 lumens @ 6 watts|
|Colour Temperature:||2700K, 3000K, 4000K|
|CRI Warm White (3000°K):||90+|
|Beam Angles:||15°, 25°, 38°, 60°|
|Standards:||AS/NZS 61046, UL 1838, 2108, CSA C22.2 No. 250.7, 250.0-08, CE|
|Recommended Power Supply:||Remote (Series) Driver|
