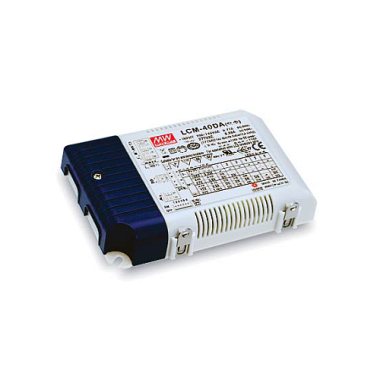

DALI Dimming LED Driver


Product code for ordering: DALI LCM-40DA

Features include:

  • Output current level selectable by DIP S.W.
  • 180~295VAC input only
  • Built-in active PFC function
  • Protections: Short circuit / Over voltage / Over temperature
  • Cooling by free air convection
  • Fully isolated plastic case
  • Class II power unit, no FG
  • Built-in DALI interface and push dimming function
  • IP20 design
  • Temperature compensation function by external NTC
  • No load power consumption less than 0.5W
  • Power supplied synchronization function up to 10 units
  • Suitable for indoor LED lighting application
  • 3 years warranty

Input v: 230v
Output v: Multi DIP Switch
Output w: 40w
IP Rating: IP20
Cable Length: None
Dimmable: DALI
Max Distance: 60m
Auto Re-set: Yes
Mounting: Case or Canister
Dimensions: 124mm x 82mm x 23mm
