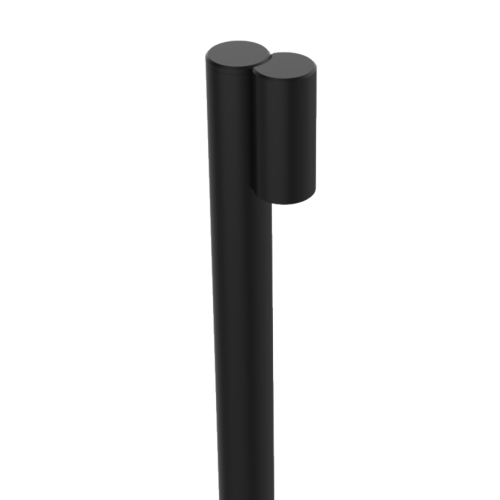

The LuxR M1 Vail Pole Mount is a compact fixed head luminaire that directs light downward, providing focused illumination. Perfect for highlighting pathways, patios, steps, or small garden features.
The regular pole length is 700mm however a custom length is available on request.
FINISHES
ECO MATT POWDERCOAT COLOURS
LED COLOURS
| Input: | 350mA |
| Forward Voltage: | 3Vf |
| Power: | 1 Watt |
| Efficacy: | 35 Lm/W |
| Colour Temperature: | 2700°K, 3000°K, 4000°K, 5000°K, Red, Green, Blue, Amber |
| CRI: | Ra 90 |
| Beam: | 13+40, 16, 37, 84 |
| Lens: | Acrylic |
| Standards: | IP67, CE |
| Light Engine: | Replacable dimmable module equipped with Cree XPG-3 LED |
| Driver: | Remote constant current driver required |
| LED Life Expectancy: | 50,000 hours L70 |
SPEC SHEETS
M1 Vail Pole MountSALES SHEETS
M1 Vail Pole Mount Sales SheetINSTRUCTIONS
M1 Vail Pole Mount InstructionsPHOTOMETRICS
M1 Vail Pole Mount
