LuxR Modux V1 Downlight

LuxR Modux V1 Downlight
Home » LuxR Modux Series » LuxR Modux V1 » LuxR Modux V1 Downlight

LuxR V1 Downlight

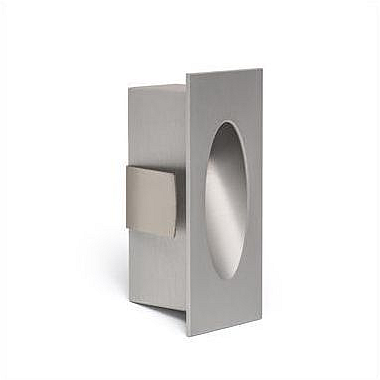

The LuxR V1 Downlight is a small low-voltage dimmable indoor/outdoor light designed for recessing low down into walls. It projects an asymmetrical wash across paths and steps and combines an ultra discreet profile without glare.

The luminaire was developed to meet the challenge of delivering high quality practical accent lighting with maximum energy efficiency and a long, maintenance-free life. Easy to install.

The V1 comes with either:

  • Leaf spring
  • Springs
  • Mounting canister

Precision machined from aluminium, this unique design is available in natural anodised satin silver or powdercoated aluminium. The clips and mounting canister are of marine grade 316 stainless steel for longevity.

The Cree 1.5 watt max LED can be easily replaced if required or substituted for a colour LED. The optic is also simple to change if you wish to alter the beam width.

Finishes [?]

Eco Matt Powdercoat Colours [?]

LED Colours [?]


Input Current: 500mA max
Forward Voltage: 3Vf
Power: 1.5 Watt max
Efficacy: 70 Lm/W
Colours: 2700°K, 3000°K, 4000°K, 5000°K, Red, Green, Blue, Amber
CRI [3000°K]: 90+
Beam: Asymmetric wash
Lens: n/a
Standards: IP67, LM79, CE.
Light Engine: Plug-in dimmable module equipped with Cree XT-E LED
Driver: Remote constant current driver required
