Modux One Spike Spot

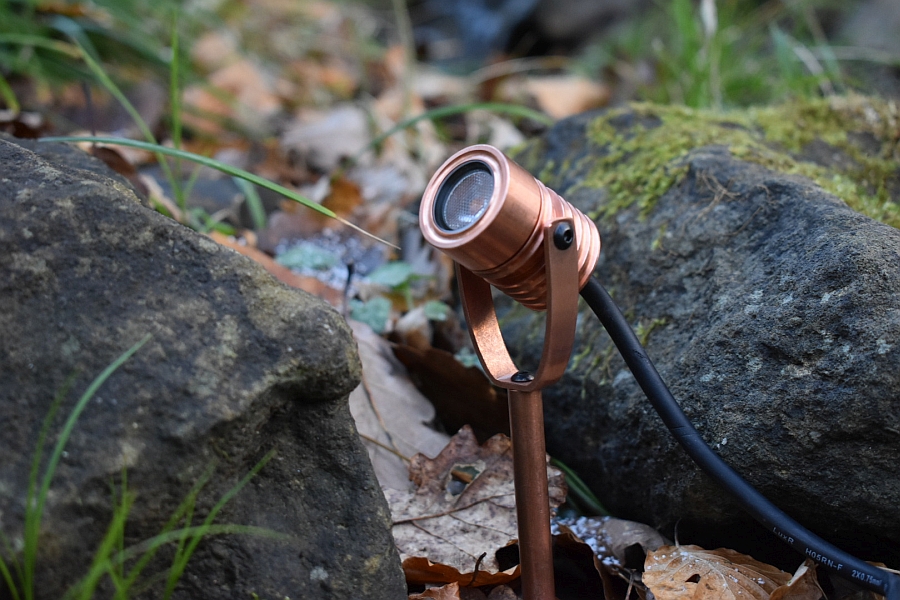

The Modux One Spike Spot is a very small low-voltage dimmable outdoor spot light with a solid metal spike for installing into garden soil. The fully adjustable spot light produces 65 lumens.

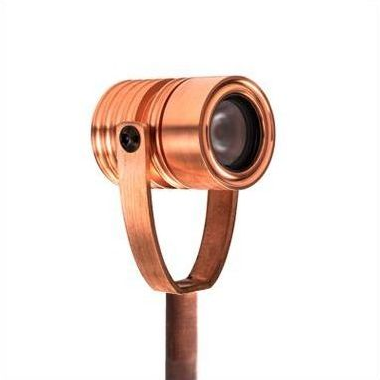

Precision machined in marine grade 316 stainless steel, copper or powdercoated aluminium, the luminaire achieves IP68 water ingress rating for peace of mind.

The Cree 1 watt max LED can be easily replaced if required or substituted for a colour LED. The optic is also simple to change if you wish to alter the beam width (see specifications).

Also available in the Modux Two & Modux Four ranges.

Finishes

LED Colours








Specifications

Input Current: 350mA
Forward Voltage: 3Vf
Power: 1 Watt max
Efficacy: 85 Lm/W
Colours: 2700°K, 3000°K, 4000°K, 5000°K, Red, Green, Blue, Amber
CRI [3000°K]: Ra 85
Beam [FWHM]: 10°, 15°, 20°, 30°
Glass Lenses: Clear, Frosted
Standards: IP68, LM79, CE UL1838
Light Engine: Plug-in dimmable module equipped with Cree XT-E LED
Driver: Remote constant current driver required
Spec Sheet: Modux One.pdf

Modux One Range

Spike:

Pond:

Recessed:

Surface Mounted:
