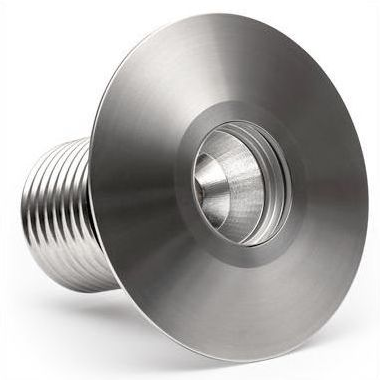

Modux Four Large Recessed Round
| A larger version of the Recessed Round. This is particularly useful when the mounting hole is generous or hole coverage is a priority.
The flange diameter is Ø85mm. Also available in the Modux Two range. Finishes LED Colours |
       |
Modux Four RGBW Large Recessed Round
LuxR is now able to offer their highly successful Modux Four range of luminaires with integrated Red, Green, Blue, White colour changing LED. This system uses DMX signal protocol and DMX-spec cabling. The topology employed to connect the LuxR RGBW fittings together is a bussed (a kind of parallel arangement) network. Technical notes on bussed networks can be found here. DMX is very fussy about cabling quality and we recommend you specify the required cable length for each luminaire ordered.
Finishes & LED Colours
Specifications
| Input Current: | 700mA |
| Forward Voltage: | 6Vf |
| Power: | 4 Watt |
| Efficacy: | 100 lm/W |
| Colours: | 2700°K, 3000°K, 4000°K, 5000°K |
| CRI [3000°K]: | 85 |
| Beam [FWHM]: | 12°, 26°, 36°, 74° |
| Glass Lenses: | Clear, Frosted |
| Standards: | IP68, LM79, CE UL1838 |
| Light Engine: | Plug-in dimmable module equipped with Cree MTG-2 LED |
| Driver: | Remote constant current driver required, or LuxR Integral 12V AC driver |
| Spec Sheet: |  Modux Four.pdf |
| Exploded View.pdf |
RGBW Specifications
| Input: | 12-24V DC , DMX Data+ , Data- , Data shield |
| Power Consumption: | 4.5W per luminaire maximum (4 colours @ 100%) |
| Light Engine: | Plugin dimmable module equipped with a high power Cree 4×1 watt RGBW LED |
| Beam [FWHM]: | Spot 20°, Medium 34°, Oval 48°x24° |
| Cabling: | Special hybrid cable comprising of : EIA-485 (aka RS-485) compliant 120 Ohm twisted pair with drain wire in a foil shield. A pair of marine grade tinned 0.75mm^2 DC power conductors. The product is supplied with a 3 metre (9.8 ft) cable. |
| Standards: | IP68, LM79, CE , USITT DMX512-A |
