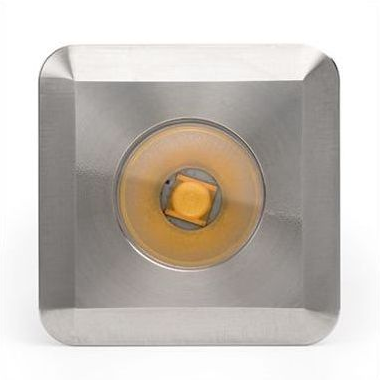

Modux Four Large Recessed Square

A larger version of the Recessed Square. This is particularly useful when the mounting hole is generous or hole coverage is a priority.

The distance across the flats is 61mm.

Also available in the Modux Two range.


LED Colours

Modux Four RGBW Large Recessed Square

LuxR is now able to offer their highly successful Modux Four range of luminaires with integrated Red, Green, Blue, White colour changing LED. This system uses DMX signal protocol and DMX-spec cabling. The topology employed to connect the LuxR RGBW fittings together is a bussed (a kind of parallel arangement) network. Technical notes on bussed networks can be found here. DMX is very fussy about cabling quality and we recommend you specify the required cable length for each luminaire ordered.

Finishes & LED Colours


Input Current: 700mA
Forward Voltage: 6Vf
Power: 4 Watt
Efficacy: 60 lm/W
Colours: 2700°K, 3000°K, 4000°K, 5000°K
CRI [3000°K]: 85
Beam [FWHM]: 12°, 26°, 36°, 74°
Glass Lenses: Clear, Frosted
Standards: IP68, LM79, CE UL1838
Light Engine: Plug-in dimmable module equipped with Cree MTG-2 LED
Driver: Remote constant current driver required, or LuxR Integral 12V AC driver
Spec Sheet: Modux Four.pdf

RGBW Specifications

Input: 12-24V DC , DMX Data+ , Data- , Data shield
Power Consumption: 4.5W per luminaire maximum (4 colours @ 100%)
Light Engine: Plugin dimmable module equipped with a high power Cree 4×1 watt RGBW LED
Beam [FWHM]: Spot 20°, Medium 34°, Oval 48°x24°
Cabling: Special hybrid cable comprising of : EIA-485 (aka RS-485) compliant 120 Ohm twisted pair with drain wire in a foil shield. A pair of marine grade tinned 0.75mm^2 DC power conductors. The product is supplied with a 3 metre (9.8 ft) cable.
Standards: IP68, LM79, CE , USITT DMX512-A

Modux Four Range




Large Recessed:

Surface Mounted:
