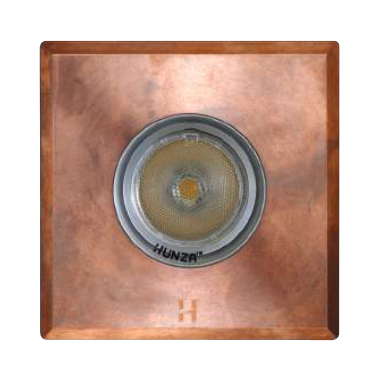

Hunza E-Lite Square

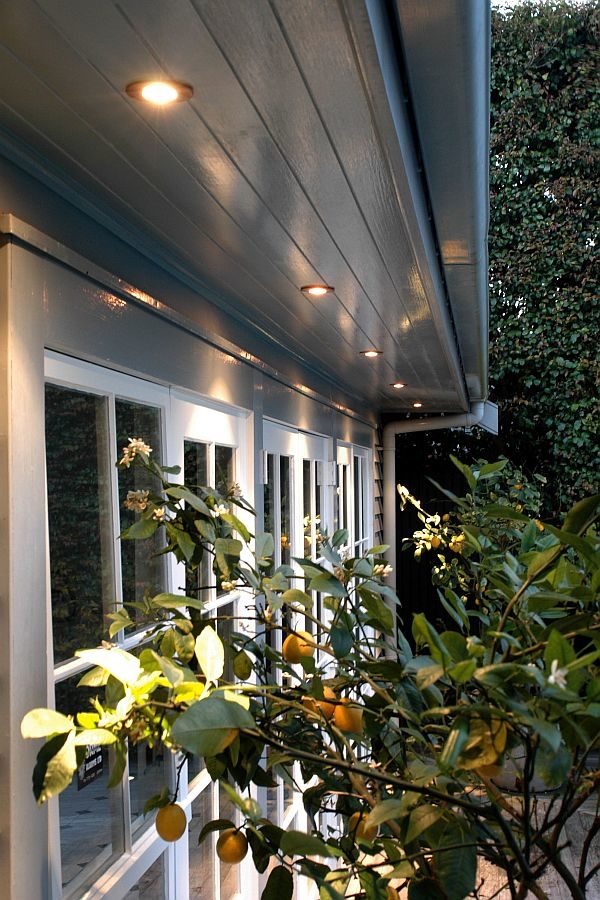

The Hunza E-Lite Square or Eave Lite Square has been specifically designed as a recessed ceiling luminaire and is ideal for downlighting from eaves, soffits, doorways, a canopy. Alternatively instead of exterior lighting, it could also be use for interior lighting in bathrooms and kitchens.

The E-Lite is machined from 316 stainless steel, copper or high corrosion resistant UV stable powdercoated aluminium. This low voltage lighting product is suitable for use with an MR16 – 20, 35 or 50 watt lamp (max) and is supplied with a 20 watt high quality European lamp.

A GU10 option is available with a 25 watt lamp European lamp and wall plate for easy waterproof installation. Please note that the operating temperature will increase.

Suitable for use with PureLED or retro fit LED lamps.

Finishes

Eco Matt Powdercoat Colours

LED Chip: Cree XHP-50-2 Plug and Play field replaceable LED board
Output: 600 lumens @ 1050mA
Lumens Per Watt: 100 lumens @ 6 watts
Colour Temperature: 2700K, 3000K, 4000K
CRI Warm White (3000°K): 90+
Beam Angles: 15°, 25°, 38°, 60°
Ingress Protection: IP66
Standards: AS/NZS 61046, UL 1838, 2108, CSA C22.2 No. 250.7, 250.0-08, CE
Recommended Power Supply: Remote (Series) Driver, Retro 110/240 volt driver

Spec Sheets

E-Lite Square PureLED
E-Lite Square

Instructions

E-Lite Square PureLED
E-Lite Square

Photometrics

E-Lite Square 15°
E-Lite Square 25°
E-Lite Square 38°
E-Lite Square 60°
