Hunza Twin Wall Spot

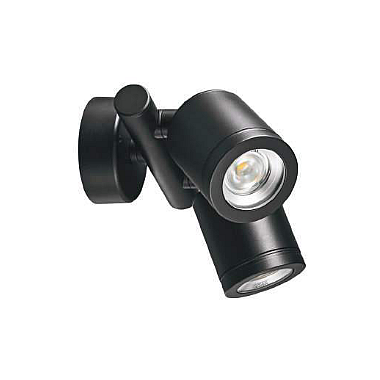

The Hunza Twin Wall Spot has two fully adjustable heads allowing 360° rotation and 0–90° elevation. Suitable for mounting on timber, masonry, stone, etc. this luminaire is ideal for down lighting decks & patios, alternatively positioned low for uplighting where it is not possible to use a spiked fitting. A diverse product that meets the demands of today’s exterior lighting schemes.

Machined from 10mm thick aluminium with a UV stable powdercoated finish, solid copper, or 316 stainless steel, clear tempered glass lens and high temperature silicon gaskets. This low voltage fitting is suitable for use with an MR16 – 20, 35 or 50 watt lamp and is supplied with 2 high quality 20 watt European lamps.

A GU10 option is available with a 25 watt lamp European lamp and wall plate for easy waterproof installation. Please note that the operating temperature will increase.

Suitable for use with PureLED or retro fit LED lamps.

Finishes

Eco Matt Powdercoat Colours

LED Chip: Cree XHP-50-2 Plug and Play field replaceable LED board
Output: 600 lumens @ 1050mA
Lumens Per Watt: 100 lumens @ 6 watts
Colour Temperature: 2700K, 3000K, 4000K
CRI Warm White (3000°K): 90+
Beam Angles: 15°, 25°, 38°, 60°
Ingress Protection: IP66
Standards: AS/NZS 61046, UL 1838, 2108, CSA C22.2 No. 250.7, 250.0-08, CE
Recommended Power Supply: Remote (Series) Driver, Retro 110/240 volt driver

Spec Sheets

Twin Wall Spot PureLED
Twin Wall Spot

Instructions

Twin Wall Spot PureLED
Twin Wall Spot

Photometrics

Twin Wall Spot 15°
Twin Wall Spot 25°
Twin Wall Spot 38°
Twin Wall Spot 60°
