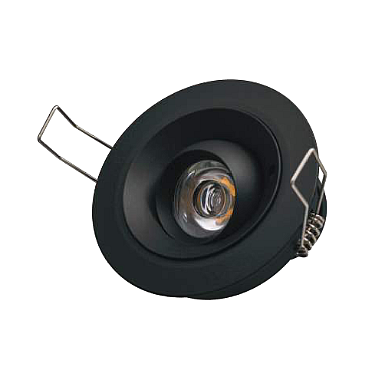

Hunza Tiling Eave Lite

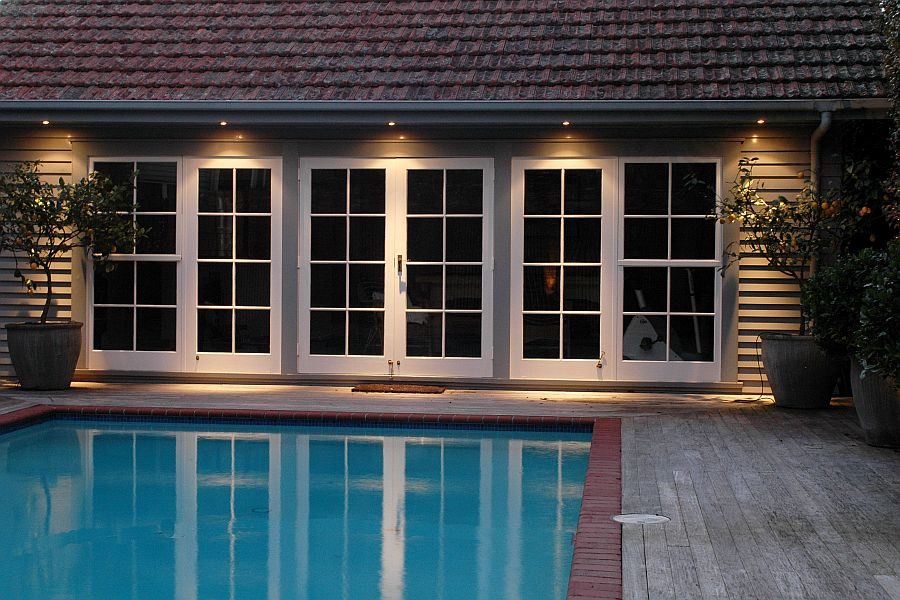

The Hunza Tiling Eave Lite is a 3 watt or 6 watt recessed downlight ideal for installation in eaves, soffits, entrance ways, verandahs, carports or covered decks. It can also be used in bathrooms, kitchens or where moisture transfer or decibel rating is a minimum requirement.

The Eyeball allows for 360° rotation and in addition there is a 30° tilt from centre for the 3 watt, and 25° tilt from centre for the 6 watt.

This luminaire is machined from a choice of solid aluminium with a UV stable powdercoated finish, solid copper or 316 stainless steel with a clear tempered, flush glass lens and high temperature silicon gaskets. The 316 stainless steel version is electro-polished to increase corrosion protection.

Suitable for use with PureLED only.

Finishes

Eco Matt Powdercoat Colours

LED Chip: Cree XHP-50-2 Plug and Play field replaceable LED board
Output: 3W : 200 lumens @ 1050mA
6W : 600 lumens @ 1050mA
Lumens Per Watt: 3W : 70 lumens @ 1 watt
6W : 100 lumens @ 6 watts
Colour Temperature: 2700K, 3000K, 4000K
CRI Warm White (3000°K): 90+
Beam Angles: 3W : 15°, 25°, 45°
6W : 15°, 25°, 38°, 60°
Ingress Protection: IP66
Standards: AS/NZS 61046, UL 1838, 2108, CSA C22.2 No. 250.7, 250.0-08, CE
Recommended Power Supply: Remote (Series) Driver

Spec Sheets

Tilting Eave Lite 3W PureLED
Tilting Eave Lite 6W PureLED

Instructions

Tilting Eave Lite PureLED

Photometrics

Tilting Eave Lite 15°
Tilting Eave Lite 25°
Tilting Eave Lite 38°
Tilting Eave Lite 45°
Tilting Eave Lite 60°
