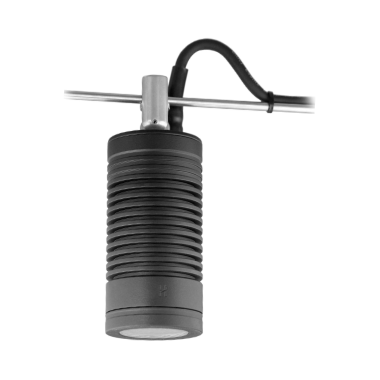

The High Power Catenary Mount LED is a single spotlight that has been specially designed for transverse suspension lighting systems. This provides a dynamic moonlighting effect and can be used for illuminating pathways, streets and walkways.
This luminaire is machined from solid aluminium with a UV stable powdercoated finish. It features an extra clear, tempered, flush glass lens and high temperature silicon gaskets.
Also available:
FINISHES
ECO MATT POWDERCOAT COLOURS
| LED Chip: | Cree CXA 1512 Plug and Play, field replaceable LED board |
| Output: | 1200 Lumens @ 700mA |
| Lumens Per Watt: | 100 Lumens @ 12 watts |
| Colour Temp: | 2700K, 3000K, 4000K |
| CRI Warm White (3000°K): | 85+ Standard, 90+ Optional |
| Beam Angles: | 15°, 30°, 40°, 70° |
| Ingress Protection: | IP66 |
| Standards: | AS/NZS 61046, UL 1838, 2108, CSA C22.2 No. 250.7, 250.0-08, CE |
| Power Supply: | Remote (Series) Driver, Integral 24VDC Driver |
