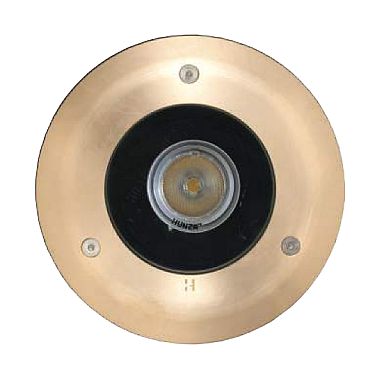

Hunza Lawn Lite Deck Mount

The Hunza Lawn Lite Deck Mount version has been specifically designed for effortless installation into timber decks. Having a smooth low profile of only 10mm, the Lawn Lite Deck Mount is ideal for deck lighting.

Designed so the lamp can be directed up to 20°, without the need to remove the fitting from the deck, and having a the three vandal-resistant Allen-head screw fixing system that attaches the flange to the body of the luminaire, this is a invaluable luminaire for any exterior lighting project.

The Lawn Lite Deck Mount has a Flush Fit lens which stops water pooling and depositing dirt on the lens. It is solidly constructed with a solid bronze or 316 stainless steel flange. The Deck Lite is not suitable for driving over.

This low voltage luminaire is suitable for use with an MR16 – 20 ,35 or 50 watt lamp and is supplied with a high quality 20 watt European lamp.

Suitable for use with PureLED or retro fit LED lamps.

Finishes

LED Chip: Cree XHP-50-2 Plug and Play field replaceable LED board
Output: 600 lumens @ 1050mA
Lumens Per Watt: 100 lumens @ 6 watts
Colour Temperature: 2700K, 3000K, 4000K
CRI Warm White (3000°K): 85+ Standard, 90+ Optional
Beam Angles: 15°, 25°, 38°, 60°
Ingress Protection: IP67
Standards: AS/NZS 61046, UL 1838, 2108, CSA C22.2 No. 250.7, 250.0-08, CE
Recommended Power Supply: Remote (Series) Driver, Retro 110/240 volt driver

Spec Sheets

Lawn Lite Deck Mount PureLED
Lawn Lite Deck Mount

Instructions

Lawn Lite Deck Mount PureLED
Lawn Lite Deck Mount

Photometrics

Lawn Lite Deck Mount 15
Lawn Lite Deck Mount 25
Lawn Lite Deck Mount 38
Lawn Lite Deck Mount 60
