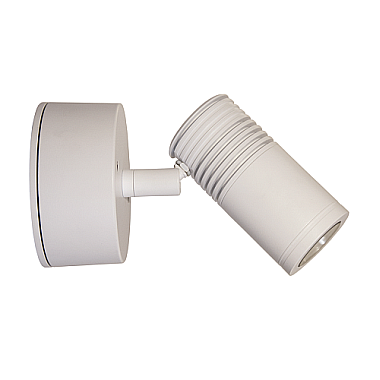

The High Power Wall Spot LED has been designed to be mounted on walls and provide directional light for pathways and structural elements of a building. This luminaire has a fully adjustable head allowing 360° rotation and 0–90° elevation.
This luminaire is machined from solid aluminium with a UV stable powdercoated finish. It features an extra clear, tempered, flush glass lens and high temperature silicon gaskets.
Also available:
| LED Chip: | Cree CXA1512 Plug and Play field replaceable PCB boards |
| Output: | 1200 Lumens @ 700mA |
| Lumens Per Watt: | 100 Lumens @ 12 watts |
| Colour Temp: | 2700K, 3000K, 4000K |
| CRI Warm White (3000°K): | 85+ Standard, 90+ Optional |
| Beam Angles: | 15°, 30°, 40° |
| Ingress Protection: | IP66 |
| Standards: | AS/NZS 61046, UL 1598, CSA C22.2 No. 250.0 |
| Power Supply: | Remote (Series) Driver, Retro 110/240 volt driver |
