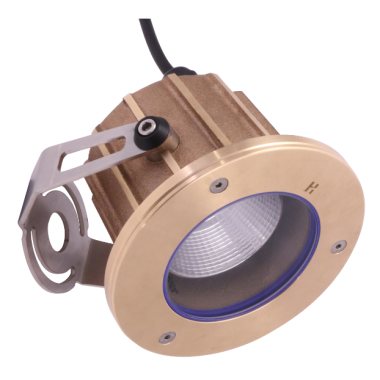

Hunza Ultra Flood Lite Solid Cast Bronze

The Hunza Ultra Flood Lite in solid cast bronze has been designed to be mounted on vertical surfaces. It can be used for wall washing, to provide directional light and to highlight architectural features and structural elements.

It has a fully adjustable head, allowing 120° rotation and 0-120° elevation and can then be fixed in place using the inbuilt locking mechanism.

The solid cast bronze body makes this fitting perfect for installation where conditions may be harsh.

Finishes

LED Chip: Cree CXA 2540 Plug and Play field replaceable PCB boards
Output: 2300 lumens @ 500mA
Lumens Per Watt: 126 lumens @ 18 watts
Colour Temperature: 2700K, 3000K, 4000K
CRI Warm White (3000°K): 80 Standard, 90+ Optional
Beam Angles: 22°, 33°, 51°
Ingress Protection: IP68 – not for use in pools or ponds
Standards: AS/NZS 61046cUL 1838, 2108, CE
Recommended Power Supply: Remote (Series) Driver, Retro 110/240 volt driver

Spec Sheets

Ultra Flood Lite Solid Cast Bronze

Instructions

Ultra Flood Lite Solid Cast Bronze

Photometrics

Ultra Flood Lite SCB 3K 22°
Ultra Flood Lite SCB 3K 33°
Ultra Flood Lite SCB 3K 51°
Ultra Flood Lite SCB 4K 22°
Ultra Flood Lite SCB 4K 33°
Ultra Flood Lite SCB 4K 51°

Ultra Flood Lite SCB 3K 22°
Ultra Flood Lite SCB 3K 33°
Ultra Flood Lite SCB 3K 51°
Ultra Flood Lite SCB 4K 22°
Ultra Flood Lite SCB 4K 33°
Ultra Flood Lite SCB 4K 51°
