Hunza Tier Lite Wall Mount

The Hunza Tier Lite Wall Mount is not for directional lighting, light is emitted on a horizontal plane around 360 degrees, not projecting any vertical light. Suitable for mounting on timber, stone, brick, etc. Ideal for path lighting and general illumination for deck lighting and patios.

The lens is manufactured from high UV stable acrylic with stainless anti-glare mesh or as an option, an Opaque lens is available which gives a much softer illumination.

Solidly constructed from 10mm thick aluminium with a UV stable powder coated finish (standard colours bronze, green, matt black, silver and white ) or solid copper or 316 stainless steel with high temperature silicon gaskets.

This low voltage fitting is suitable for use with a G4 halogen lamp – 10, 20 watt and is supplied with a high quality 20 watt European 3000 lamp.

Alternatively, a 8 watt self ballasted 240 volt fluorescent option is available which offers excellent light output (comparative to a 40w incandescent lamp), low energy usage, long lamp life and very low heat generation.

Lifetime Warranty on Lens Breakage


Power Supply

Light Ideas T-20 or Hunza Buriable IG20 safety isolating transformer (single installation), multi installation with any of the Light Ideas transformer range or Hunza IG safety isolating transformers, alternatively the Hunza Wall Mount series WMl00 – WM3OO Double Insulated Safety Isolating Transformers.

RETRO Fit Installation An installation where mounting a transformer is a problem, e.g. a brick wall where there is only the cable protruding out of the wall and it is not an option to recess the transformer or when replacing an existing light fitting. The Retro option is available with an approved 240/250 AC encapsulated IP66 dimmable transformer built into the base. The base size increases to 78mm diameter and 48mm deep.

Available Options & Finishes

Copper, 316L Stainless Steel and Powdercoated Aluminium:
TLWM Tier Lite Wall Mount
TLWM/R Tier Lite Wall Mount Retro (Integral Elec. Transformer)

Accessories

CJK150 – Cable Joint Kit (available in single kits or packs of 5)
LENS/OPAQUE – OPAQUE Lens for PGL/BOL/FN/TL

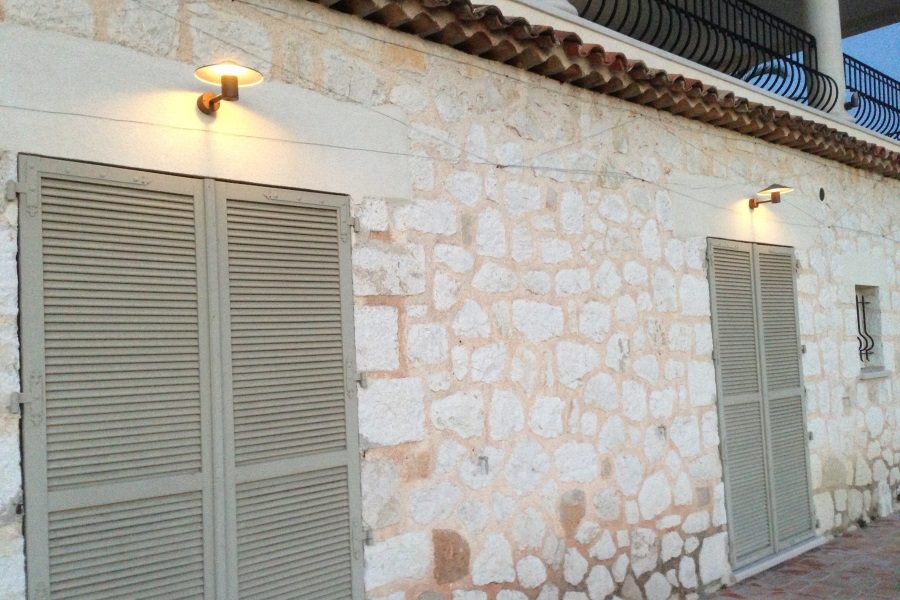

Tier Lite Wall Mount Effects
