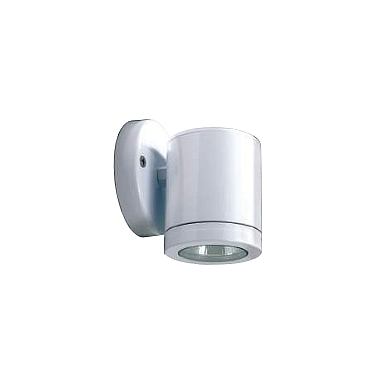

Hunza Wall Down Lite

The Hunza Wall Down Lite has a fixed head. Suitable for mounting on timber, masonry, stone, etc. this luminaire is ideal for direct downlighting on walls, doorways, fences etc. alternatively positioned low for uplighting where it is not possible to use a spiked fitting. A diverse product that meets the demands of today’s exterior lighting schemes.

Machined from 10mm thick aluminium with a UV stable powder coated finish (standard colours bronze, green, matt black, silver and white) or solid copper, or 316 stainless steel, clear tempered glass lens and high temperature silicon gaskets.

This low voltage fitting is suitable for use with an MR16 – 20, 35 or 50 watt lamp and is supplied with a high quality 20 watt European lamp.

A GU10 option is available with a 25 watt lamp European lamp and wall plate for easy waterproof installation. Please note that the operating temperature will increase.

Lifetime Warranty on Lens Breakage


Power Supply

Light Ideas T-20 or Hunza Buriable IG20 safety isolating transformer (single installation), multi installation with any of the Light Ideas transformer range or Hunza IG safety isolating transformers, alternatively the Hunza Wall Mount series WMl00 – WM3OO Double Insulated Safety Isolating Transformers.

RETRO Fit Installation An installation where mounting a transformer is a problem, e.g. a brick wall where there is only the cable protruding out of the wall and it is not an option to recess the transformer or when replacing an existing light fitting. The Retro option is available with an approved 240/250 AC encapsulated IP66 dimmable transformer built into the base. The base size increases to 78mm diameter and 48mm deep.

Available Options & Finishes

Copper, 316L Stainless Steel and Powdercoated Aluminium:
DL Wall Down Lite
DL/R Wall Down Lite Retro (Integral Elec. Transformer)
DL/GU Wall Down Lite GU10

Accessories

CJK150 – Cable Joint Kit (available in single kits or packs of 5)
LENS/DSTEP-FR – Frosted Lens
GG/### – Glare Guard
HCL/### – Hex Cell Louvre
MR16 LEDs (available in Warm White, Cool White and Blue)

Dimensions

Wall Down Lite

Downloads

Wall Down Lite.pdf *
Wall Down Lite PureLED.pdf *

* Modified for the UK & European market


Wall Down Lite Effects
